# Electrostatic Analysis of Transformer Bushing Insulator

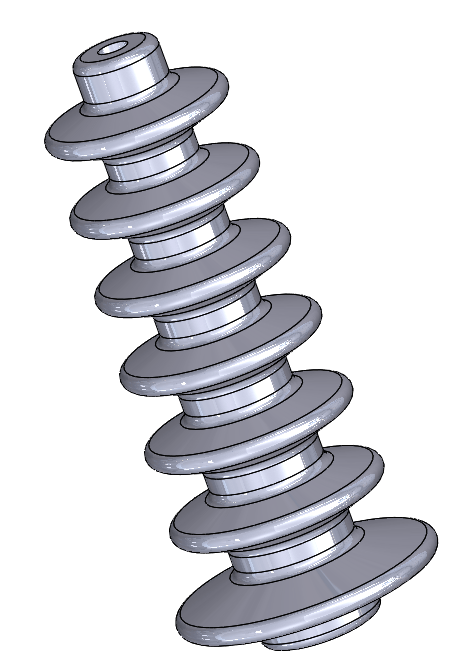

This example shows how to compute the electric field intensity in a bushing insulator of a transformer. Bushing insulators must withstand large electric fields due to the potential difference between the ground and the high-voltage conductor. This example uses a 3-D electrostatic model to compute the voltage distribution and electric field intensity in the bushing.

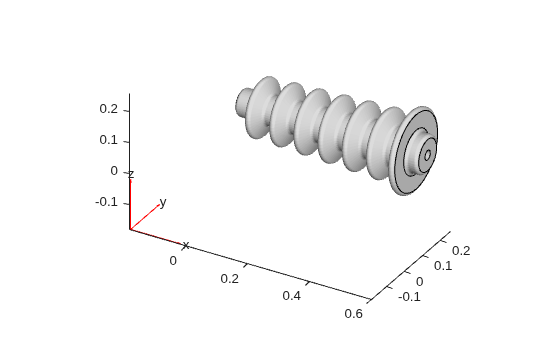

Import and plot the bushing geometry.

```gmBushing = importGeometry("TransformerBushing.stl"); pdegplot(gmBushing)```

Model the surrounding air as a cuboid, and position the cuboid to contain the bushing at its center.

```gmAir = multicuboid(1,0.4,0.4); gmAir.translate([0.25,0.125,-0.07]); gmModel = addCell(gmAir,gmBushing);```

Plot the resulting geometry with the cell labels.

```pdegplot(gmModel,CellLabels="on", ... FaceAlpha=0.25)```

Create an `femodel` object for electrostatic analysis and include the geometry in the model.

```model = femodel(AnalysisType="electrostatic", ... Geometry= gmModel);```

Specify the vacuum permittivity value in the SI system of units.

`model.VacuumPermittivity = 8.8541878128E-12;`

Specify the relative permittivity of the air.

```model.MaterialProperties(1) = ... materialProperties(RelativePermittivity=1);```

Specify the relative permittivity of the bushing insulator.

```model.MaterialProperties(2) = ... materialProperties(RelativePermittivity=5);```

Before specifying boundary conditions, identify the face IDs by plotting the geometry with the face labels. To see the IDs more clearly, rotate the geometry.

```pdegplot(gmModel,FaceLabels="on", ... FaceAlpha=0.2) view([55 5])```

Specify the voltage boundary condition on the inner walls of the bushing exposed to conductor.

`model.FaceBC(12) = faceBC(Voltage=10E3);`

Specify the grounding boundary condition on the surface in contact with the oil tank.

`model.FaceBC(9) = faceBC(Voltage=0);`

Generate a mesh and solve the model.

```model = generateMesh(model); R = solve(model)```
```R = ElectrostaticResults with properties: ElectricPotential: [75373x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] ```

Plot the voltage distribution in the bushing.

```elemsBushing = findElements(R.Mesh,"Region",Cell=2); pdeplot3D(R.Mesh.Nodes, ... R.Mesh.Elements(:,elemsBushing), ... ColorMapData=R.ElectricPotential);```

Plot the magnitude of the electric field intensity in the bushing.

```Emag = sqrt(R.ElectricField.Ex.^2 + ... R.ElectricField.Ey.^2 + ... R.ElectricField.Ez.^2); pdeplot3D(R.Mesh.Nodes, ... R.Mesh.Elements(:,elemsBushing), ... ColorMapData=Emag);```
