Refresh data in graph when data source is specified
any data source properties (
ZDataSource) on all objects in graphs in the
current figure. If the specified data source has changed, the MATLAB® software
updates the graph to reflect this change.
The variable assigned to the data source property must be in
the base workspace or you must specify the
refreshes the data of the objects in the specified figure.
refreshes the data of the objects specified in
the children of those objects. Therefore,
contain figure, axes, or plot object handles.
enables you to specify whether the data source properties are evaluated
in the base workspace or the workspace of the function in which
'workspace' is can be one of these
'base' — Evaluate the data
source properties in the base workspace.
'caller' — Evaluate the
data source properties in the workspace of the function that called

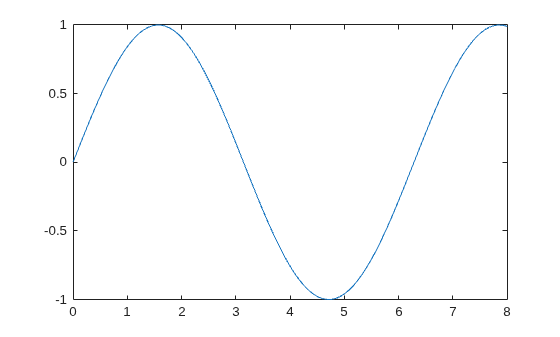

Plot a sine wave and return the chart line handle,
x = linspace(0,8); y = sin(x); figure h = plot(x,y);

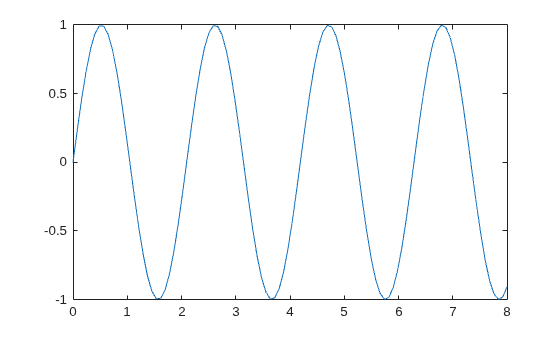

Identify the data sources for the plot by setting the
YDataSource properties of the line to
y, respectively. Then, modify
refreshdata so that the graph updates with the changes to
h.XDataSource = 'x'; h.YDataSource = 'y'; y = sin(x.^3); refreshdata
The Linked Plots feature (see documentation for
linkdata) sets up data sources for graphs and synchronizes them with the
workspace variables they display. When you use this feature, you do not also need to
refreshdata, as it is essentially automatically triggered
every time a data source changes.
If you are not using the Linked Plots feature, you need to set the
ZDataSource properties of a graph in order to use
refreshdata. You can do that programmatically or use the
Property Editor, one of the plotting tools. In the Property Editor, select the graph
(e.g., a chart line object) and type in (or select from the drop-down choices) the
name(s) of the workspace variable(s) from which you want the plot to refresh, in the
fields labelled X Data Source, Y Data Source,
and/or Z Data Source. The call to
causes the graph to update.
