matlab.task.LiveTask Class

Namespace: matlab.task

Base class for developing custom Live Editor tasks

Since R2022a

Description

matlab.task.LiveTask is a class you build on to make your own Live Editor tasks. When you define a subclass of this base class, you can use the LiveTask properties and methods to build your Live Editor tasks. Specify this syntax on the first line of your class definition file to directly inherit from the LiveTask class, where MyTask is the name of your task:

classdef MyTask < matlab.task.LiveTask

The matlab.task.LiveTask class is a handle class.

Class Attributes

Abstract	true
ConstructOnLoad	true
HandleCompatible	true

For information on class attributes, see Class Attributes.

Properties

Public Properties

Parent — Parent container

Figure object

Parent container of the task, specified as a Figure object.

Attributes:

GetAccess	public
SetAccess	private
Transient	true
Dependent	true
GetObservable	true
SetObservable	true
NonCopyable	true

State — Current state of UI objects in task

struct

Current state of UI objects in the task, specified as a struct.

Define the get.State and set.State methods for your class to get and set the State of the task. The Live Editor uses these methods to restore a task to a specified state during copy, paste, undo, and redo operations, as well as when the live script containing the task is closed and reopened. The current state of the task is stored in a struct. When the live script is closed, the Live Editor uses the jsonencode function to convert the struct returned by get.State to JSON format and saves the encoded state with the live script. When the live script is reopened, the Live Editor converts the encoded state back to a struct, which is then used to set the current state of the task using set.State. Refer to the jsonencode function for more information about the data types it supports.

For more information about defining the get.State and set.State methods, see Live Editor Task Development Overview.

Attributes:

GetAccess	public
SetAccess	public
Dependent	true
Abstract	true

Summary — Task summary

string scalar | character vector

Task summary, specified as a string scalar or character vector. The task summary displays at the top of the task and remains visible when the task is collapsed.

Define the get.Summary method for your class to get the Summary of the task. The Live Editor uses this method to dynamically generate the description of what the task does.

For more information about defining the get.Summary method, see Live Editor Task Development Overview.

Attributes:

GetAccess	public
SetAccess	protected
Dependent	true
Abstract	true

AutoRun — Run task automatically on change

true or 1 (default) | false or 0

Run task automatically on change, specified as a numeric or logical 1 (true) or 0 (false). Set to 1 to have the task run automatically when a user modifies the task parameters.

Attributes:

GetAccess	public
SetAccess	public
SetObservable	true
AbortSet	true

Protected Properties

LayoutManager — Task grid layout manager

GridLayout

Task grid layout manager, specified as a GridLayout. Add all graphics and UI objects for the task to the grid layout manager. If an object is added to the task directly, MATLAB^® throws an error.

Attributes:

GetAccess	protected
SetAccess	protected

Methods

Public Methods

Abstract Methods

generateCode	Generate code for instance of Live Editor task subclass
reset	Reset instance of Live Editor task subclass

Protected Methods

Abstract Methods

setup

Set up instance of Live Editor task subclass

Examples

Display Image Using Custom Live Editor Task

Define a class called DisplayImage that creates a custom Live Editor task for displaying an image.

To define the class, create a file called DisplayImage.m that contains the following class definition with these features:

• State and Summary public properties that store the current state of the task and a dynamic summary of what the task does.

• Private properties that store the edit field and button for selecting an image.

• A setup method that initializes the task.

• A generateCode method that updates the generated code for the task when the selected image changes.

• get.Summary, get.State, and set.State methods for getting and setting the summary and state of the task.

• An inputImageFile method that prompts the user to select an image to display.

• A reset method that resets the state of the task.

classdef DisplayImage < matlab.task.LiveTask
    properties(Access = private,Transient)
        FileNameEditField           matlab.ui.control.EditField
        BrowseButton                matlab.ui.control.Button
    end

    properties(Dependent)
        State
        Summary
    end

    methods(Access = protected)
        function setup(task)
            createComponents(task);
            setComponentsToDefault(task);
        end
    end

    methods
        function [code,outputs] = generateCode(task)
            if isempty(task.FileNameEditField.Value)
                % Return empty values if there is not enough
                % information to generate code
                code = "";
                outputs = {};
                return
            end

            outputs = {"im"};
            code = ["% Get Image"
                outputs{1} + " = imread(""" + ...
                task.FileNameEditField.Value + """);"
                ""
                "% Visualize results"
                "figure"
                "imshow(" + outputs{1} + ");"];
        end

        function summary = get.Summary(task)
            if isempty(task.FileNameEditField.Value)
                summary = "Display selected image";
            else
                [~,name,~] = fileparts(task.FileNameEditField.Value);
                summary = "Display image '" + name + "'";
            end
        end

        function state = get.State(task)
            state = struct;
            state.FileNameEditFieldValue = task.FileNameEditField.Value;
        end

        function set.State(task,state)
            task.FileNameEditField.Value = state.FileNameEditFieldValue;
        end

        function reset(task)
            setComponentsToDefault(task);
        end
    end

    methods(Access = private)
        function createComponents(task)
            task.LayoutManager.RowHeight = ["fit" "fit" "fit"];
            task.LayoutManager.ColumnWidth = "fit";

            % Row 1: Select image section label
            uilabel(task.LayoutManager,"Text","Select image", ...
                "FontWeight","bold");

            % Row 2: Select data section components
            inputgrid = uigridlayout(task.LayoutManager,"RowHeight", ...
                "fit","ColumnWidth",{"fit",200,"fit"},"Padding",0);
            uilabel(inputgrid,"Text","Input image");
            task.FileNameEditField = uieditfield(inputgrid, ...
                "Editable",false);
            task.BrowseButton = uibutton(inputgrid,"Text","Browse", ...
               "ButtonPushedFcn",@task.inputImageFile);

            % Row 3: Display results section label
            uilabel(task.LayoutManager,"Text","Display results", ...
                "FontWeight","bold");
        end

        function setComponentsToDefault(task)
            task.FileNameEditField.Value = "";
        end

        function inputImageFile(task,~,~)
            % Display uigetfile dialog box
            filterspec = ["*.jpg;*.tif;*.png;*.gif","All Image Files"];
            [f,p] = uigetfile(filterspec);

            % Make sure user did not cancel uigetfile dialog box
            if (ischar(p))
               fileName = [p f];
               task.FileNameEditField.Value = fileName;
            end

            notify(task,"StateChanged");
        end
    end
end

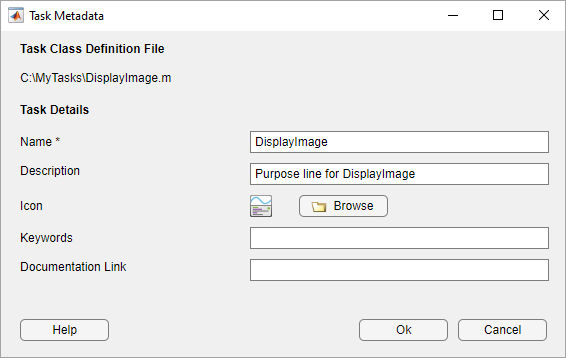

Next, configure the task metadata by calling the matlab.task.configureMetadata function and selecting the DisplayImage.m file. The Task Metadata dialog box opens with all of the required task metadata details prepopulated.

Select OK to use the prepopulated metadata details. MATLAB creates a folder named resources inside the folder containing your task class definition file. Inside the resources folder, MATLAB generates a file named liveTasks.json.

Add the folder containing the task class definition file to the MATLAB path by calling the addpath function or using the Add Folder button in the Set Path dialog box.

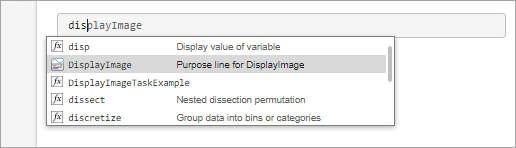

Add the task to a live script. On a code line, type display. MATLAB shows a list of suggested matches.

Select Display Image from the list. MATLAB adds the Display Image task to the live script.

More About

Update Task After Change

The Live Editor listens for changes in a task and calls the generateCode method to update the task's generated code when it detects a change. The Live Editor detects changes by monitoring the components in the task that fire these events:

• ValueChanged

• ButtonPushed

• ImageClicked

• SelectionChanged

To update the generated code for a task when changes occur outside of the events listed (for example, in a component that does not fire these events), you can call the notify method to fire the StateChanged event and trigger a call to the generateCode method for the task.

notify(task,"StateChanged");

Note

The Live Editor does not monitor events for components that are created dynamically at run time.

Version History

Introduced in R2022a
