The Camera toolbar enables you to perform a number of viewing operations interactively. To use the Camera toolbar,
Display the toolbar by selecting Camera
Toolbar from the figure window's View menu or by typing
cameratoolbar in the Command
Select the type of camera motion control you want to use by either
clicking on the buttons or changing the
mode in the Command Window.
Position the cursor over the figure window and click, hold down the right mouse button, then move the cursor in the desired direction.
The display updates immediately as you move the mouse.

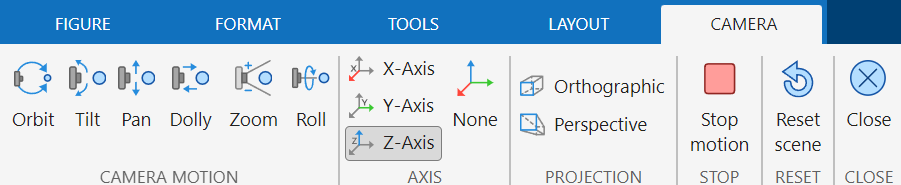

The toolbar contains the following parts:
Camera Motion Controls — These tools select which camera motion function to enable. You can also access the camera motion controls from the Tools menu.
Principal Axis Selector — Some camera controls operate with respect to a particular axis. These selectors enable you to select the principal axis or to select nonaxis constrained motion. The selectors are grayed out when not applicable to the currently selected function. You can also access the principal axis selector from the Tools menu.
Scene Light — The scene light button toggles a light source on or off in the scene (one light per axes).
Projection Type — You can select orthographic or perspective projection types.
Reset and Stop — Reset returns the scene to the view when interactions began. Stop causes the camera to stop moving (this can be useful if you apply too much cursor movement). You can also access an expanded set of reset functions from the Tools menu.
The principal axis of a scene defines the direction that is oriented upward on the screen. For example, a MATLAB® surface plot aligns the up direction along the positive z-axis.
Principal axes constrain camera-tool motion along axes that are (on the screen) parallel and perpendicular to the principal axis that you select. Specifying a principal axis is useful if your data is defined with respect to a specific axis. Z is the default principal axis, because this matches the MATLAB default 3-D view.
Two of the camera tools (Orbit and Pan/Tilt) allow you to select a principal
axis as well as axis-free motion. On the screen, the axes of rotation are
determined by a vertical and a horizontal line, both of which pass through the
point defined by the
property and are parallel and perpendicular to the principal axis.
For example, when the principal axis is z, movement occurs about
A vertical line that passes through the camera target and is parallel to the z-axis
A horizontal line that passes through the camera target and is perpendicular to the z-axis
This means the scene (or camera, as the case may be) moves in an arc whose center is at the camera target. The following picture illustrates the rotation axes for a z principal axis.
The axes of rotation always pass through the camera target.
When you create a plot, MATLAB displays it with an aspect ratio that fits the figure window. This
behavior might not create an optimum situation for the manipulation of 3-D
graphics, as it can lead to distortion as you move the camera around the scene.
To avoid possible distortion, it is best to switch to a 3-D visualization mode
(enabled from the command line with the command
vis3d). When using the Camera toolbar, MATLAB automatically switches to the 3-D visualization mode, but warns
you first with the following dialog box.
This dialog box appears only once per MATLAB session.
This section discusses the individual camera motion functions selectable from the toolbar.
When interpreting the following diagrams, keep in mind that the camera always points towards the camera target. See Camera Graphics Terminology for an illustration of the graphics properties involved in camera motion.
Orbit Camera rotates the camera about the z-axis (by default). You can select x-, y-, z-, or free-axis rotation using the Principal Axis Selectors. When using no principal axis, you can rotate about an arbitrary axis.
Orbit Camera changes the
property while keeping the
The scene light is a light source that is placed with respect to the camera
position. By default, the scene light is positioned to the right of the camera
right). Orbit Scene Light changes the light's offset from the
camera position. There is only one scene light; however, you can add other lights
Toggle the scene light on and off by clicking the yellow light bulb icon.
Orbit Scene Light moves the scene light by changing the light's
Pan/Tilt Camera moves the point in the scene that the camera points to while keeping the camera fixed. The movement occurs in an arc about the z-axis by default. You can select x-, y-, z-, or free-axis rotation using the Principal Axes Selectors.
Pan/Tilt Camera moves the point in the scene that the camera is pointing to by
Moving the cursor horizontally or vertically (or any combination of the two) moves the scene in the same direction.
Moving the cursor up or to the right moves the camera toward the scene. Moving the cursor down or to the left moves the camera away from the scene. It is possible to move the camera through objects in the scene and to the other side of the camera target.
This function moves the
along the line connecting the camera position and the camera target.
Zoom Camera makes the scene larger as you move the cursor up or to the right and smaller as you move the cursor down or to the left. Zooming does not move the camera and therefore cannot move the viewpoint through objects in the scene.
Zoom is implemented by changing the
The larger the angle, the smaller the scene appears, and vice versa.
Camera Roll rotates the camera about the viewing axis, thereby rotating the view on the screen.
Camera Roll changes the
