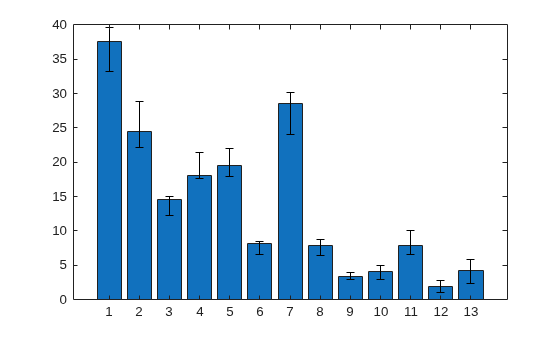

Bar Chart with Error Bars
Create a bar chart with error bars using both the bar
and errorbar
functions.
x = 1:13; data = [37.6 24.5 14.6 18.1 19.5 8.1 28.5 7.9 3.3 4.1 7.9 1.9 4.3]'; errhigh = [2.1 4.4 0.4 3.3 2.5 0.4 1.6 0.8 0.6 0.8 2.2 0.9 1.5]; errlow = [4.4 2.4 2.3 0.5 1.6 1.5 4.5 1.5 0.4 1.2 1.3 0.8 1.9]; bar(x,data) hold on er = errorbar(x,data,errlow,errhigh); er.Color = [0 0 0]; er.LineStyle = 'none'; hold off
