geocrop
Description
[
crops the raster specified by B
,RB
] = geocrop(A
,RA
,latlim
,lonlim
)A
and raster reference
RA
and returns the cropped raster B
and raster
reference RB
. The returned raster is cropped to geographic limits in
degrees close to those specified by latlim
and
lonlim
.
To clip vector data represented by a point, line, or polygon shape in geographic
coordinates, use the geoclip
function
instead.
Examples
Crop Geographic Raster
Crop a geographic raster and display the cropped raster on a map.
First, load elevation raster data and a geographic cells reference object for the Korean peninsula. Then, crop the raster to the limits specified by latlim
and lonlim
.
load korea5c
latlim = [34.25 38.72];
lonlim = [125.85 129.92];
[B,RB] = geocrop(korea5c,korea5cR,latlim,lonlim);

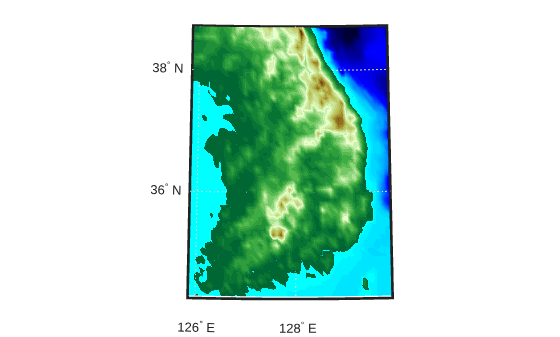

Display the cropped raster as a surface on a map. Apply a colormap appropriate for elevation data using the demcmap
function.
worldmap(latlim,lonlim) geoshow(B,RB,'DisplayType','surface') demcmap(B)
Shift Longitude Limits
Shift the longitude limits of a raster with limits that span 360 degrees using the geocrop
function. Then, display the shifted data as a surface on a map.
First, load elevation raster data for the world and a geographic cells reference object. Then, shift the longitude limits of the raster from [0, 360] to [-180, 180].
load topo60c
latlim = topo60cR.LatitudeLimits;
[B,RB] = geocrop(topo60c,topo60cR,latlim,[-180 180]);
Compare the rasters by querying their LongitudeLimits
properties.
topo60cR.LongitudeLimits
ans = 1×2
0 360
RB.LongitudeLimits
ans = 1×2
-180 180

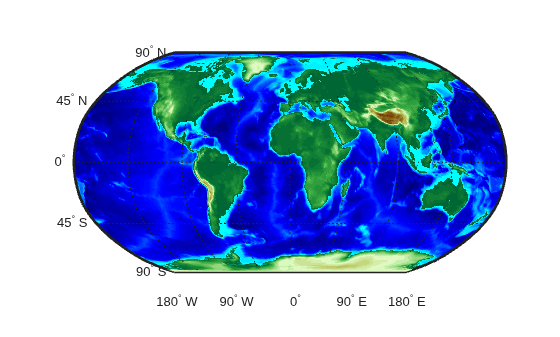

Display the shifted data as a surface on a map. Move the meridian labels to the bottom of the map using the mlabel
function. Specify meridian labels to display using the MLabelLocation
property. Then, apply a colormap appropriate for topographic data using the demcmap
function. Note that the shifted longitude limits appear at the edges of the map.
worldmap(RB.LatitudeLimits,RB.LongitudeLimits) geoshow(B,RB,'DisplayType','surface') mlabel('south') setm(gca,'MLabelLocation',-180:90:180) demcmap(B)
Input Arguments
A
— Geographic raster
array
Geographic raster, specified as an M-by-N or M-by-N-by-P numeric or logical array.
RA
— Raster reference
GeographicCellsReference
object | GeographicPostingsReference
object
Raster reference for A
, specified as a GeographicCellsReference
object or GeographicPostingsReference
object.
latlim
— Latitude limits
two-element vector
Latitude limits, specified as a two-element numeric vector of the form
[slat nlat]
, where slat
is the southernmost
limit in degrees and nlat
is the northernmost limit in
degrees.
lonlim
— Longitude limits
two-element vector
Longitude limits, specified as a two-element numeric vector of the form
[wlon elon]
, where wlon
is the westernmost limit
in degrees and elon
is the easternmost limit in degrees.
Output Arguments
RB
— Raster reference
GeographicCellsReference
object | GeographicPostingsReference
object
Raster reference for B
, returned as a GeographicCellsReference
object or GeographicPostingsReference
object. The object type of
RB
matches the object type of RA
.
The exact latitude and longitude limits of RB
do not match the
limits specified by latlim
and lonlim
, unless
they coincide with a cell boundary or posting location. Otherwise, the limits of
RB
are slightly larger than latlim
and
lonlim
.
If the limits specified by latlim
and
lonlim
do not intersect the raster specified by
A
and RA
, then RB
is
empty.
Version History
Introduced in R2020a
