Display Data over Basemaps When Internet Access Is Intermittent

In most cases, displaying data over basemaps requires internet access. When you have intermittent internet access, you can prepare for an offline workflow by reading an image from a basemap and saving the image as a MAT or GeoTIFF file. Then, when you are in an offline environment, you can load the image from the file and use it as a base layer for your data.

This example shows how to plot point data over a basemap image. The behavior of the example depends on whether you have internet access, but the resulting map is the same.

Specify whether you have internet access by using the logical scalar useInternet.

  • If useInternet is true, read an image from the basemap and save it to a GeoTIFF file.

  • If useInternet is false, read an image from a GeoTIFF file.

useInternet = true;

If you use this example as a model to create your own maps, you must create the saved files the first time you run the example by setting useInternet to true.

Load Data

Import a shapefile containing the coordinates of locations in Boston as a geospatial table. The shapefile represents the locations using points in a projected coordinate reference system (CRS). Extract the xy-coordinates.

GT = readgeotable("boston_placenames.shp");
pointsX = GT.Shape.X;
pointsY = GT.Shape.Y;

Get information about the projected CRS.

pointsCRS = GT.Shape.ProjectedCRS
pointsCRS =
  projcrs with properties:

                    Name: "NAD83 / Massachusetts Mainland"
           GeographicCRS: [1×1 geocrs]
        ProjectionMethod: "Lambert Conic Conformal (2SP)"
              LengthUnit: "meter"
    ProjectionParameters: [1×1]

Read Basemap

When you read an image from a basemap using the readBasemapImage function, you must specify the region to read using geographic coordinates. For this example, however, the locations are in projected coordinates. Unproject the xy-coordinates to latitude-longitude coordinates.

[pointslat,pointslon] = projinv(pointsCRS,pointsX,pointsY);

Find the latitude-longitude limits for a region surrounding the coordinates by using the geoquadline and bufgeoquad functions.

[latlim,lonlim] = geoquadline(pointslat,pointslon);
[latlim,lonlim] = bufgeoquad(latlim,lonlim,0.005,0.005);

Read a basemap image for the region from the "satellite" basemap.

  • If useInternet is true, read the basemap image as an array, a map cells reference object in Web Mercator coordinates (EPSG code 3857), and an attribution string. Save the array and reference object to a GeoTIFF file. Include the attribution by specifying the ImageDescription TIFF tag.

  • If useInternet is false, load the basemap image and attribution.

if useInternet
    [A,R,attrib] = readBasemapImage("satellite",latlim,lonlim);
    tag = struct("ImageDescription",attrib);
    [A,R] = readgeoraster("satelliteBoston.tif");
    info = imfinfo("satelliteBoston.tif");
    attrib = info.ImageDescription;

Project Data to Web Mercator Coordinates

Project the geographic coordinates to the same CRS as the basemap image.

[wmX,wmY] = projfwd(R.ProjectedCRS,pointslat,pointslon);

Display Data over Basemap Image

Display the basemap image on a map with no axis labels.

hold on
axis off

Display the locations on the same map.

title("Locations in Boston Over Satellite Imagery")
subtitle("Basemap Attribution: " + attrib)

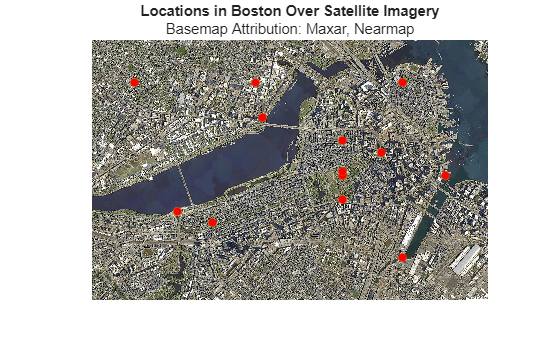

Figure contains an axes object. The axes object with title Locations in Boston Over Satellite Imagery contains 2 objects of type image, line.

The geographic CRS underlying the geographic coordinates is NAD83, while the geographic CRS underlying the basemap image is WGS84. NAD83 and WGS84 are similar, but not identical. As a result, the coordinates and basemap can appear misaligned.
