Lidar Viewer

Visualize and analyze lidar data


The Lidar Viewer app is a visualization, analysis, and preprocessing tool for lidar data. The app provides these features:

  • Load and visualize point cloud data. The app can import pointCloud objects from the workspace and read point cloud data from PLY, PCAP, LAS, LAZ, PCD, rosbag files, or any custom source. You can export the processed point clouds as PCD or PLY files.

  • Measure point cloud attributes such as distance, elevation, location, and volume.

  • View and analyze point cloud data using the built-in camera views, color maps, and clustering options. You can also create and save custom camera views.

  • Use built-in preprocessing algorithms for ground removal, organization, denoising, median filtering, cropping, and downsampling of lidar point cloud data.

  • Import custom preprocessing algorithms for the lidar data. You can also create a user interface element to interactively tune the algorithm parameters.

  • Export and reuse the preprocessing operations performed on a point cloud as a function script.

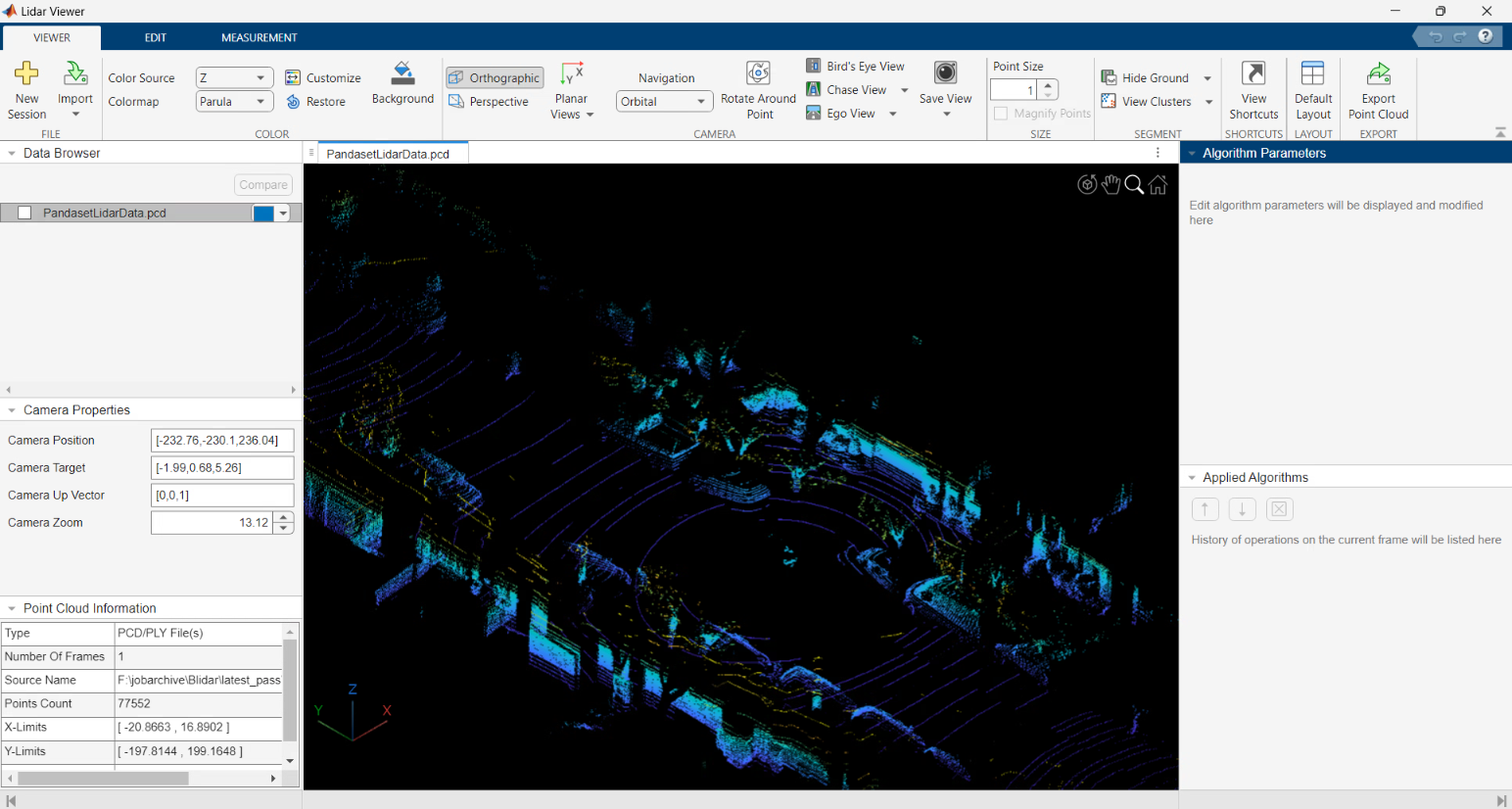

Lidar Viewer App Session

Open the Lidar Viewer App

  • MATLAB® Toolstrip: On the Apps tab, under Image Processing and Computer Vision, click the app icon.

  • MATLAB command prompt: Enter lidarViewer.

Programmatic Use

expand all

lidarViewer opens a new session of the Lidar Viewer app.

Version History

Introduced in R2021b
