Local range of image
Identify Objects in 2-D Image
Read an image into the workspace.
I = imread('liftingbody.png');
Filter the image. The
rangefilt function returns an array where each output pixel contains the range value (maximum value - minimum value) of the 3-by-3 neighborhood around the corresponding pixel in the input image.
J = rangefilt(I);

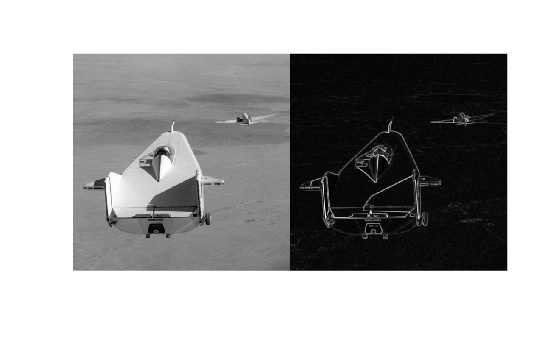

Display the original image and the filtered image side-by-side.
Detect Regions of Texture in Images
This example shows how to detect regions of texture in an image using the texture filter functions

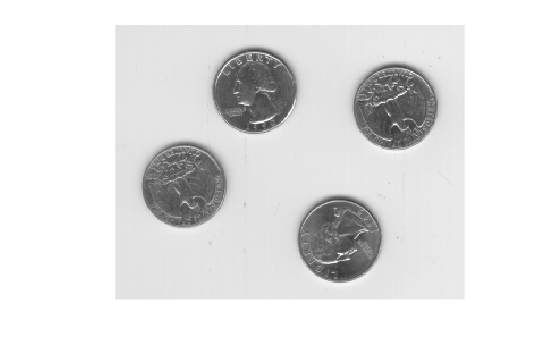

Read an image into the workspace and display it. In the figure, the background is smooth—there is very little variation in the gray-level values. In the foreground, the surface contours of the coins exhibit more texture. In this image, foreground pixels have more variability and thus higher range values.
I = imread('eight.tif'); imshow(I)

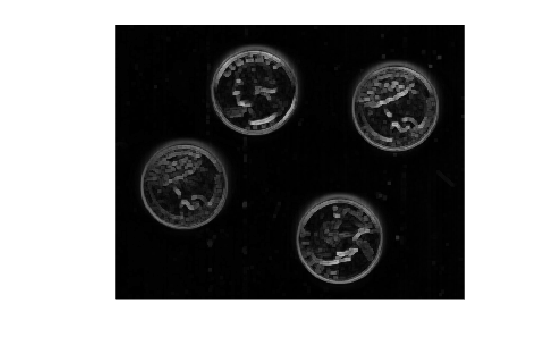

Filter the image with the
rangefilt function and display the results. Range filtering makes the edges and contours of the coins visible.
K = rangefilt(I); figure imshow(K)
Identify Vertical Edges Using Range Filtering

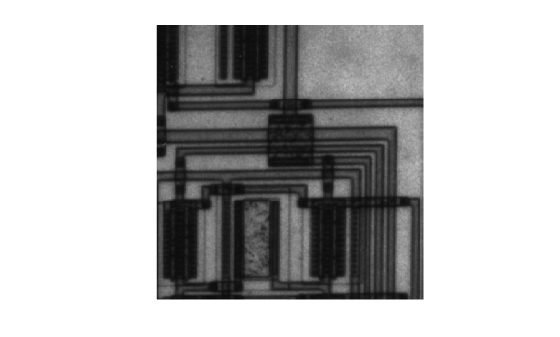

Read an image into the workspace, and display it.
I = imread('circuit.tif'); imshow(I);
Define a neighborhood. In this example, the neighborhood returns a large value when there is a large difference between pixel values to the left and right of an input pixel. The filtering does not consider pixels above and blow the input pixel. Thus, this neighborhood emphasizes vertical edges.
nhood = [1 1 1];

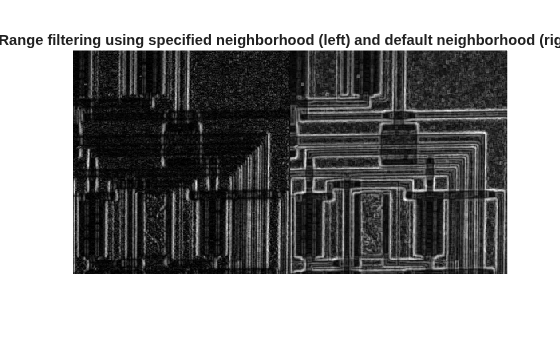

Perform the range filtering operation using this neighborhood. For comparison, also perform range filtering using the default 3-by-3 neighborhood. Compare the results.
J = rangefilt(I,nhood); K = rangefilt(I); figure imshowpair(J,K,'montage'); title('Range filtering using specified neighborhood (left) and default neighborhood (right)');
The result using the specified neighborhood emphasizes vertical edges, as expected. In comparison, the default filter is not sensitive to edge directionality.
I — Image to be filtered
Image to be filtered, specified as a numeric array of any dimension.
nhood — Neighborhood
true(3) (default) | logical or numeric array containing zeros and ones
Neighborhood, specified as a logical or numeric array containing zeros and
ones. The size of
nhood must be odd in each dimension.
rangefilt determines the center element of the
floor((size(nhood) + 1)/2).
To specify neighborhoods of other shapes, such as a disk, use the
strel function to create a
structuring element object of the desired shape. Then, extract the
neighborhood from the structuring element object’s
J — Filtered image
Filtered image, returned as a numeric array of the same size as the input
I is of data type
single, or an unsigned data type such as
uint8, then the data type of
is the same as the data type of
int32, then the data
rangefilt uses the morphological functions
imerode to determine the maximum and
minimum values in the specified neighborhood. Consequently,
rangefilt uses the padding behavior of these morphological
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
rangefilt supports the generation of C
code (requires MATLAB®
Coder™). For more information, see Code Generation for Image Processing.
Version HistoryIntroduced before R2006a
R2023a: Support for C code generation
rangefilt now supports the generation of
C code (requires MATLAB
