randomCropWindow2d

(Not recommended) Create randomized rectangular cropping window

randomCropWindow2d is not recommended. Use randomWindow2d instead. For more information, see Compatibility Considerations.

Description

example

win = randomCropWindow2d(inputSize,targetSize) determines the window to crop from a 2-D input image of size inputSize such that the size of the cropped image is targetSize. The coordinates of the window are selected from a random position in the input image.

Examples

collapse all

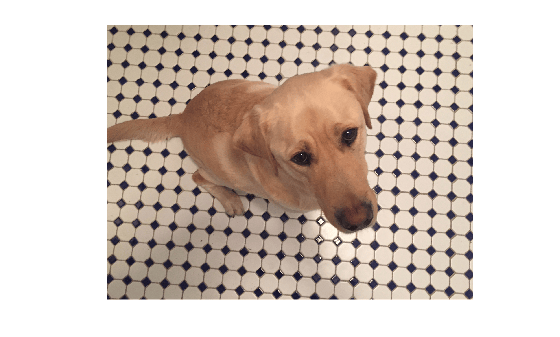

Read and display an image.

A = imread('kobi.png');
imshow(A)

Figure contains an axes. The axes contains an object of type image.

Specify the target size of the cropping window.

targetSize = [1000 1000];

Create three random crop windows. Each window has a different position from the input image.

win1 = randomCropWindow2d(size(A),targetSize);
win2 = randomCropWindow2d(size(A),targetSize);
win3 = randomCropWindow2d(size(A),targetSize);

Crop the original image using each of the random crop windows.

B1 = imcrop(A,win1);
B2 = imcrop(A,win2);
B3 = imcrop(A,win3);

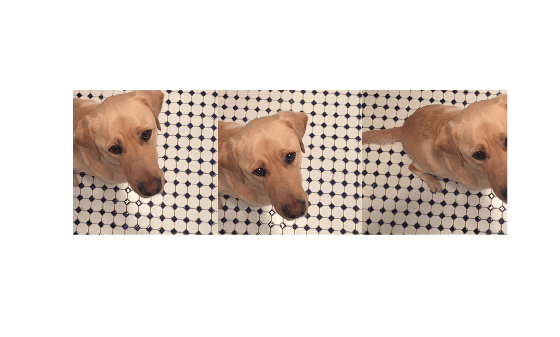

Display the three cropped images as a montage.

montage({B1,B2,B3},'Size',[1 3]);

Figure contains an axes. The axes contains an object of type image.

Input Arguments

collapse all

Input image size, specified as one of the following.

Type of Input ImageFormat of inputSize
2-D grayscale or binary image2-element vector of positive integers of the form [height width]
2-D RGB or multispectral image of size 3-element vector of positive integers of the form [height width channels]

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Target image size, specified as one of the following.

Type of Target ImageFormat of targetSize
2-D grayscale or binary image2-element vector of positive integers of the form [height width]
2-D RGB or multispectral image of size 3-element vector of positive integers of the form [height width channels]

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

Cropping window, returned as a Rectangle object.

Compatibility Considerations

expand all

Not recommended starting in R2021a

Introduced in R2019b
