Estimate illuminant using principal component analysis (PCA)

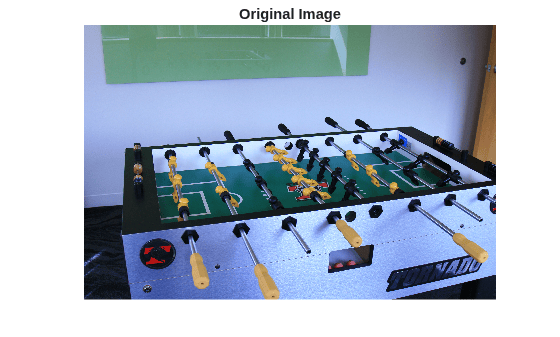

Open an image and display it. Specify an optional magnification to shrink the size of the displayed image.
A = imread('foosball.jpg'); figure imshow(A,'InitialMagnification',25) title('Original Image')
Principal component analysis assumes that the RGB values are linear. However, the JPEG file format saves images in the gamma-corrected sRGB color space. Undo the gamma correction by using the
A_lin = rgb2lin(A);
Estimate the scene illumination from the darkest and brightest 3.5% of pixels (the default percentage). Because the input image is linear, the
illumpca function returns the illuminant in the linear RGB color space,
illuminant = illumpca(A_lin)
illuminant = 1×3 0.4075 0.5547 0.7254
The third coefficient of
illuminant is the largest, which is consistent with the blue tint of the image.
Correct colors by providing the estimated illuminant to the
B_lin = chromadapt(A_lin,illuminant,'ColorSpace','linear-rgb');
To display the white-balanced image correctly on the screen, apply gamma correction by using the
B = lin2rgb(B_lin);

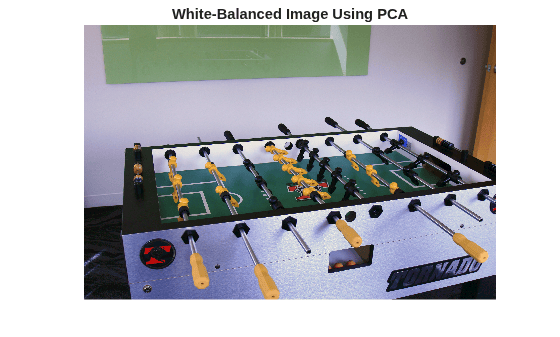

Display the corrected image, setting the optional magnification.
figure imshow(B,'InitialMagnification',25) title('White-Balanced Image using Principal Component Analysis')
A— RGB image
RGB image, specified as an m-by-n-by-3 numeric array.
percentage— Percentage of pixels to retain
3.5(default) | numeric scalar
Percentage of pixels to retain for the illuminant estimation, specified as a numeric scalar in the range (0, 50].
mask— Image mask
Image mask, specified as an m-by-n
logical or numeric matrix. The mask indicates which pixels of the input
A to use when estimating the illuminant. The
computation excludes pixels in
A that correspond to a
mask value of 0. By default, the mask has all 1s, and all pixels in
A are included in the estimation.
illuminant— Estimate of scene illumination
Estimate of scene illumination, returned as a 3-element numeric row vector. The three elements correspond to the red, green, and blue values of the illuminant.
The algorithm assumes uniform illumination and linear RGB values. If you are
working with nonlinear sRGB or Adobe RGB images, use the
rgb2lin function to undo the gamma correction before using
illumpca. Also, make sure to convert the chromatically
adapted image back to sRGB or Adobe RGB by using the
Pixel colors are represented as vectors in the RGB color space. The algorithm orders colors according to the brightness, or norm, of their projection on the average color in the image. The algorithm retains only the darkest and brightest colors, according to this ordering. Principal component analysis (PCA) is then performed on the subset of colors. The first component of PCA indicates the illuminant estimate.
 Cheng, Dongliang, Dilip K. Prasad, and Michael S. Brown. "Illuminant Estimation for Color Constancy: Why spatial-domain methods work and the role of the color distribution." Journal of the Optical Society of America A. Vol. 31, Number 5, 2014, pp. 1049–1058.
