# Analyze Truth Data and Define Truth Model

*Since R2024a*

This example shows how to analyze recorded truth data to model the motion of truth objects and configure a filter to track them.

### Sources and Types of Truth Data

There are three typical sources of recorded truth data:

**Simulation**: Data is collected by running a simulated scenario and recording the kinematics of each truth object. The recorded data is perfect, noiseless, can be obtained at any update rate, and is complete in the sense that any kinematic time derivative can be recorded.**Instrumented tests**: Data is collected during a flight test where truth objects of interest are instrumented with GPS and inertial measurement units. The recorded data typically has low noise, is recorded at about 1 Hz, and includes a limited number of kinematic derivatives, usually just position and velocity.**Labeled data**: Data is collected during uncontrolled tests, for example, by driving on a road. Sensor data is later labeled manually or semi-automatically to generate estimates of the truth. The data typically has a high noise level, may contain erroneous identifications, and can have various update rates.

The example focuses on analyzing recordings of truth objects from simulation and from instrumented tests.

### Analyze Simulated Truth

This section focuses on the first case: Truth recorded from simulation. This example is based on the Benchmark Trajectories for Multi-Object Tracking scenario, as described in [1].

Use the code below to convert the benchmark trajectories scenario into tables that list the time, position, and velocity history for each truth object. The function `scenarioToTruth`

is provided in the supporting functions at the bottom of this script.

load("TruthScenario","scenario"); updateRate = 10; includeVelocity = true; includeAcceleration = false; truthTables = scenarioToTruth(scenario,UpdateRate=updateRate,includeVelocity=includeVelocity,IncludeAcceleration=includeAcceleration);

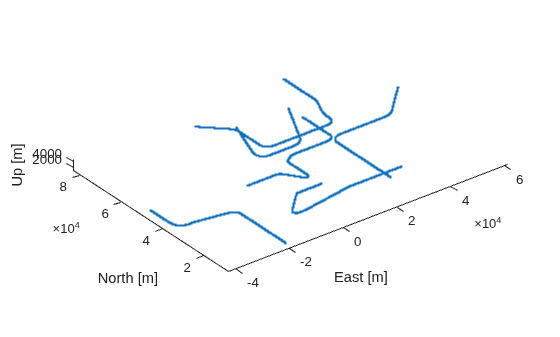

To visualize the truth trajectories, use the code below.

f = figure; hold on; for i = 1:numel(truthTables) scatter3(truthTables{i}.Position(:,2),truthTables{i}.Position(:,1),-truthTables{i}.Position(:,3),1,lines(1)); end xlabel('East [m]'); ylabel('North [m]'); zlabel('Up [m]'); view(3); axis equal;

The figure above shows that the targets are changing direction rapidly, which means that these are maneuvering targets. It is easier to analyze target motion by looking at speeds, rates of change in speed (tangential acceleration), and turns (normal acceleration). The function `addManeuvers`

attached to this script analyzes the truth tables and adds speed, tangential acceleration, and normal acceleration.

The process of analyzing the maneuvers and adding them to the table includes the following:

If velocity and acceleration are not provided in the truth, complete the data using simple derivatives. For perfect data obtained from simulation this step is trivial.

Use the velocity vector at each timestep to compute its norm, the speed at that timestep.

As the recording is in North-East-Down coordinates, use the z-component of the velocity for climb rate.

Use the velocity vector and the acceleration vector at each time step to find the tangential acceleration at that timestep.

Compute the normal acceleration from the norm of the acceleration and the tangential acceleration.

truthTables = addManeuvers(truthTables);

It is now easier to observe the maneuvers by using the `plotManeuvers`

function attached to this script. Use the `minat`

and `minan`

values to define the minimum tangential and normal accelerations, respectively, that are considered as maneuvers. In the figure below, a blue section represents a constant velocity leg without accelerations, a green section represents flight along a straight line while increasing speed, a red section represents flight along a straight line while decreasing speed, and a yellow section represents turning.

minat = 1; % Minimum tangential acceleration, m/s^2 minan = 1; % Minimum normal acceleration, m/s^2 plotManeuvers(f,truthTables,minat,minan);

The following line of code uses the `summarizeManeuvers`

function attached to this script to summarize the maneuvering limits for each target. Note that the percentages in the table may not add up to 100%, because a target can change speed and turn at the same time.

summaryTable = summarizeManeuvers(truthTables,minat,minan)

`summaryTable=`*6×10 table*
Constant Velocity % Turn % Speed Change % Min Speed Max Speed Min Climb Rate Max Climb Rate Min Tangential Acceleration Max Tangential Acceleration Max Normal Acceleration
___________________ ______ ______________ _________ _________ ______________ ______________ ___________________________ ___________________________ _______________________
76.661 23.339 0 289.34 289.71 0 0 -0.33228 0.38319 35.447
74.446 25.338 3.7277 301.06 305.69 -32.286 0.023165 -5.4425 5.2036 41.087
73.582 17.45 20.367 274.3 458.75 0 0 -14.9 5.023 44.198
56.942 19.287 36.629 251.45 411.71 -0.74238 55.382 -3.2049 7.253 59.918
32.037 33.117 60.238 274.46 453.79 -1.8727 281.49 -40.11 40.893 72.883
41.221 28.795 55.592 208.87 426.84 -167.82 1.074 -13.831 11.176 72.561

### Analyze Recorded Truth

So far, the analysis used perfect truth, obtained from simulation. While this is useful, a more common case is when targets are instrumented in a test and their GPS position is recorded and analyzed.

Recorded truth has inherent measurement noises, lower update rate, and often has missing measurements.

For the purposes of this example, you simulate these effects in the following lines of code using the `gpsSensor`

System object and the helper `simulateRecording`

function.

sampleRate = 1 ; % Sampling rate of the instrumentation systems horizontalPositionAccuracy = 1.6; % Horizontal accuracy of the instrumentation systems verticalPositionAccuracy = 3; % Vertical accuracy of the instrumentation systems velocityAccuracy = 0.1; % Velocity accuracy of the instrumentation systems decayFactor = 0.9; % Decay factor of the instrumentation systems gps = gpsSensor(SampleRate=sampleRate, ... HorizontalPositionAccuracy=horizontalPositionAccuracy, ... VerticalPositionAccuracy=verticalPositionAccuracy, ... VelocityAccuracy=velocityAccuracy, ... DecayFactor=decayFactor); recordingProbability = 0.9; % Probability of sample being reported recordedTables = simulateRecording(scenario,gps,recordingProbability);

#### Smooth Noisy Truth Data

Depending on the amount of noise in the recorded data, you may want to smooth the data before analyzing it. This is an optional step.

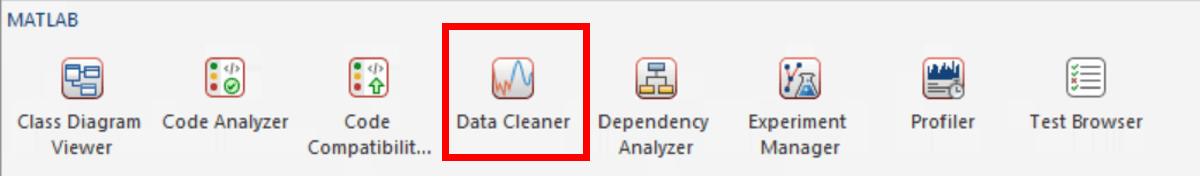

To do that, use the MATLAB® Data Cleaner app, and use the Smooth Data option to smooth the recording. The following image shows how to navigate to the Data Cleaner app in the MATLAB Window.

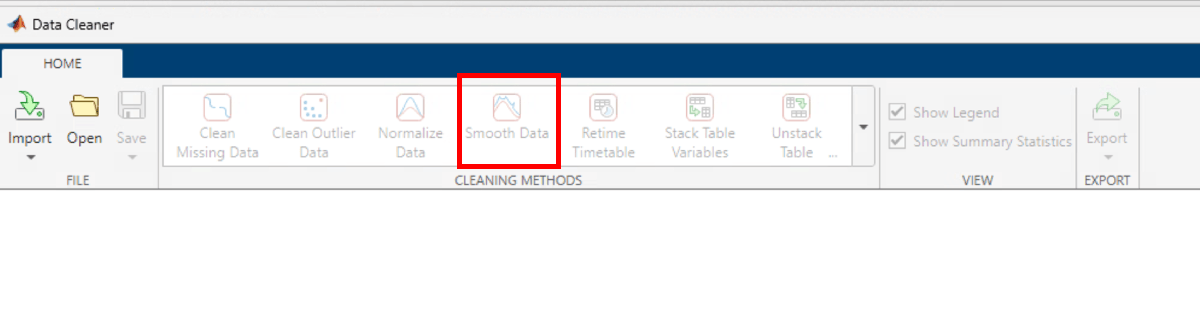

The next image shows how to find the Smooth Data tool inside the Data Cleaner app.

The following line uses the `smoothRecording`

function that was exported from the app and uses the Gaussian option. The choice of `timewindow`

depends on the data sample rate.

```
timewindow = 5;
recordedTables = smoothRecording(recordedTables, timewindow);
```

The rest of the workflow is similar to the above for simulated truth.

recordedTables = addManeuvers(recordedTables); minat = 1; % Minimum tangential acceleration, m/s^2 minan = 1; % Minimum normal acceleration, m/s^2 plotManeuvers(f,recordedTables,minat,minan);

summaryTable = summarizeManeuvers(recordedTables,minat,minan)

`summaryTable=`*6×10 table*
Constant Velocity % Turn % Speed Change % Min Speed Max Speed Min Climb Rate Max Climb Rate Min Tangential Acceleration Max Tangential Acceleration Max Normal Acceleration
___________________ ______ ______________ _________ _________ ______________ ______________ ___________________________ ___________________________ _______________________
73.143 26.857 0 285.5 289.8 -0.1386 0.099782 -0.77035 0.89733 27.344
70.482 29.518 4.2169 296.23 305.01 -31.969 0.12531 -1.411 1.9341 36.395
69.822 21.302 20.71 274.39 457.39 -0.091943 0.13917 -10.988 0.89954 37.77
52.632 26.901 40.351 245.29 411.86 -0.61134 54.704 -4.1592 5.6348 54.84
29.697 39.394 60.606 282.73 449.24 -0.12708 272.82 -8.0657 5.9692 64.294
40.237 35.503 56.213 205.31 426.97 -120.24 0.13243 -10.655 7.2804 64.799

As expected, the results of the analyzed recorded data do not perfectly match the simulated truth analysis. In particular, the tangential acceleration values are not accurate, because the recording velocities are noisy. However, the other values give a rough ballpark about the minimum and maximum speeds and even the rough magnitude of the maximum normal acceleration, that is around a 7G turn.

### Define Truth Specification

So far, you have analyzed recorded data of multiple truth objects. The next step in defining tracking algorithms is to provide one or more truth specifications that capture this knowledge in a way that enables defining tracking filters and multi-object trackers.

To specify one truth specification based on all targets above, use the `summaryTable`

to define ranges of speeds and accelerations as shown in the code below.

truthSpec = struct(Speed = [min(summaryTable.("Min Speed")),max(summaryTable.("Max Speed"))], ... ClimbRate = [min(summaryTable.("Min Climb Rate")),max(summaryTable.("Max Climb Rate"))], ... TangentialAcceleration = [min(summaryTable.("Min Tangential Acceleration")),max(summaryTable.("Max Tangential Acceleration"))], ... MaxNormalAcceleration = max(summaryTable.("Max Normal Acceleration"))); disp(truthSpec);

Speed: [205.3083 457.3947] ClimbRate: [-120.2439 272.8185] TangentialAcceleration: [-10.9879 7.2804] MaxNormalAcceleration: 64.7988

There are many ways to define a tracking filter based on this truth specification. For simplicity, you use an extended Kalman filter, configured with a constant velocity model. You use the first target position and specify a general 100m position measurement uncertainty.

state = zeros(6,1); state(1:2:5) = recordedTables{1}.Position(1,:); cvekf = trackingEKF(@constvel,@cvmeas,state, ... StateTransitionJacobianFcn=@constveljac, ... MeasurementJacobianFcn=@cvmeasjac, ... StateCovariance=100^2*eye(6), ... HasAdditiveProcessNoise=false, ... ProcessNoise = eye(3), ... % Just define the size for now HasAdditiveMeasurementNoise=true, ... MeasurementNoise = eye(3));

The truth specification above helps to define the unknown `StateCovariance`

elements related to the velocity, which was not measured.

cvekf.StateCovariance(2,2) = truthSpec.Speed(2)^2; % Corresponds to the unknown Vx cvekf.StateCovariance(4,4) = truthSpec.Speed(2)^2; % Corresponds to the unknown Vy cvekf.StateCovariance(6,6) = max(abs(truthSpec.ClimbRate)); % % Corresponds to the unknown Vz disp(cvekf.StateCovariance);

1.0e+05 * 0.1000 0 0 0 0 0 0 2.0921 0 0 0 0 0 0 0.1000 0 0 0 0 0 0 2.0921 0 0 0 0 0 0 0.1000 0 0 0 0 0 0 0.0027

Similarly, use the acceleration components to define the `ProcessNoise`

. The maximum acceleration is the worst case `ProcessNoise`

, but better estimates can be used.

maxTotalAccelerationSquared = max(abs(truthSpec.TangentialAcceleration))^2+truthSpec.MaxNormalAcceleration^2; cvekf.ProcessNoise = maxTotalAccelerationSquared * eye(3); disp(cvekf.ProcessNoise);

1.0e+03 * 4.3196 0 0 0 4.3196 0 0 0 4.3196

### Summary

In this example you learned how to analyze truth data in order to get an estimate of the maneuvers that the targets perform. The results of this analysis can be used to define the right target motion model and provide ranges for speed and accelerations. If used within a tracking filter, these values can form the basis for initializing the filter state covariance and for the process noise.

### References

W.D. Blair, G. A. Watson, T. Kirubarajan, Y. Bar-Shalom, "Benchmark for Radar Allocation and Tracking in ECM." Aerospace and Electronic Systems IEEE Trans on, vol. 34. no. 4. 1998.

### Supporting Functions

** scenarioToTruth** Record truth tables from the scenario. Only truth objects with trajectory that implements the

`lookupPose`

method are recorded.function truthTables = scenarioToTruth(scenario,options) arguments scenario (1,1) trackingScenario options.UpdateRate (1,1) double = 100; % Update rate in Hz options.IncludeVelocity (1,1) logical = true; % Record velocity options.IncludeAcceleration (1,1) logical = false; % Record acceleration end startTime = 0; stopTime = scenario.StopTime; timestep = 1/options.UpdateRate; sampleTimes = (startTime:timestep:stopTime); numTruths = numel(scenario.Platforms); truthTables = cell(1,numTruths); includeInOutput = false(1,numTruths); for i = 1:numTruths if ismethod(scenario.Platforms{i}.Trajectory, 'lookupPose') includeInOutput(i) = true; [pos, ~, vel, acc, ~] = lookupPose(scenario.Platforms{i}.Trajectory, sampleTimes); truthTables{i} = table(sampleTimes(:),pos,'VariableNames',["Time","Position"]); if options.IncludeVelocity truthTables{i} = addvars(truthTables{i}, vel, NewVariableNames = "Velocity"); end if options.IncludeAcceleration truthTables{i} = addvars(truthTables{i}, acc, NewVariableNames = "Acceleration"); end end end truthTables = truthTables(includeInOutput); end

** addManeuvers** Adds speed, tangential acceleration, and normal acceleration to the truth table.

function truthTables = addManeuvers(truthTables) for i = 1:numel(truthTables) vel = velocity(truthTables{i}); if ~ismember('Speed',truthTables{i}.Properties.VariableNames) speed = vecnorm(vel,2,2); truthTables{i} = addvars(truthTables{i},speed,NewVariableNames="Speed"); end if ~ismember('ClimbRate',truthTables{i}.Properties.VariableNames) climbRate = -vel(:,3); % Remember that the data is North-East-Down, so climb rate is -Vz truthTables{i} = addvars(truthTables{i},climbRate,NewVariableNames="ClimbRate"); end [at,an] = acceleration(truthTables{i}); if ~ismember("TangentialAcceleration",truthTables{i}.Properties.VariableNames) truthTables{i} = addvars(truthTables{i},at,NewVariableNames="TangentialAcceleration"); end if ~ismember("NormalAcceleration",truthTables{i}.Properties.VariableNames) truthTables{i} = addvars(truthTables{i},an,NewVariableNames="NormalAcceleration"); end end end

** velocity** Return the velocity of a truth object.

function vel = velocity(truth) arguments truth table end % Check if there is a column by the name Velocity. If no, use position to find velocity [hasVelocity,velidx] = ismember('Velocity', truth.Properties.VariableNames); if hasVelocity vel = table2array([truth(:,velidx)]); else dt = diff(truth.Time); vel = diff(truth.Position,1,1)./dt; vel(end+1,:) = vel(end,:); % Make sure number of rows remains same as the table end end

** acceleration** Return the tangential and normal acceleration components of a truth object.

function [at, an] = acceleration(truth) arguments truth table end vel = velocity(truth); vmag = vecnorm(vel,2,2); dt = diff(truth.Time); dt(end+1) = 2*dt(end)-dt(end-1); % Check if there is a column by the name Acceleration. If no, use velocity % to find the acceleration [hasAcc,accidx] = ismember('Acceleration', truth.Properties.VariableNames); if hasAcc acc = table2array([truth(:,accidx)]); else dvel = diff(vel,1,1); dvel(end+1,:) = 0; acc = dvel./dt; end % Compute the tangential acceleration as d|v|/dt dvmag = diff(vmag,1,1); dvmag(end+1) = dvmag(end); at = dvmag./dt; amag = vecnorm(acc,2,2); an = sqrt(max(amag.^2-at.^2,0)); end

** plotManeuvers** Plots the maneuvers.

function plotManeuvers(f,truthTables,minat,minan) clf(f); hold on colors = [0 0.447 0.741;... % Blue for constant velocity 0.1 0.741 0.1; ... % Green for increasing speed 0.741 0.1 0.1; ... % Red for decreasing speed 0.929 0.694 0.125]; % Yellow for turning for i = 1:numel(truthTables) increasingSpeed = truthTables{i}.TangentialAcceleration > minat; decreasingSpeed = truthTables{i}.TangentialAcceleration < -minat; changingDirection = abs(truthTables{i}.NormalAcceleration) > minan; color = colors(1,:) .* (~increasingSpeed & ~decreasingSpeed & ~changingDirection) + ... colors(2,:) .* increasingSpeed + colors(3,:) .* decreasingSpeed + colors(4,:) .* changingDirection; scatter3(truthTables{i}.Position(:,2),truthTables{i}.Position(:,1),-truthTables{i}.Position(:,3),1,color); end xlabel('East [m]'); ylabel('North [m]'); zlabel('Altitude [m]'); view(3); axis equal; end

** summarizeManeuvers** Provides a summary of the maneuvers.

function summaryTable = summarizeManeuvers(truthTables,minat,minan) names = ["Constant Velocity %", "Turn %", "Speed Change %", ... "Min Speed", "Max Speed", "Min Climb Rate", "Max Climb Rate", ... "Min Tangential Acceleration", "Max Tangential Acceleration", "Max Normal Acceleration"]; summaryTable = table('Size', [numel(truthTables),numel(names)], VariableTypes=repmat({'double'},1,numel(names)), VariableNames=names); for i = 1:numel(truthTables) numSteps = size(truthTables{i},1); summaryTable.(names(1))(i) = 100*nnz(abs(truthTables{i}.TangentialAcceleration) <= minat & truthTables{i}.NormalAcceleration < minan)/numSteps; summaryTable.(names(2))(i) = 100*nnz(truthTables{i}.NormalAcceleration > minan)/numSteps; summaryTable.(names(3))(i) = 100*nnz(abs(truthTables{i}.TangentialAcceleration) > minat)/numSteps; summaryTable.(names(4))(i) = min(truthTables{i}.Speed); summaryTable.(names(5))(i) = max(truthTables{i}.Speed); summaryTable.(names(6))(i) = min(truthTables{i}.ClimbRate); summaryTable.(names(7))(i) = max(truthTables{i}.ClimbRate); summaryTable.(names(8))(i) = min(truthTables{i}.TangentialAcceleration); summaryTable.(names(9))(i) = max(truthTables{i}.TangentialAcceleration); summaryTable.(names(10))(i) = max(truthTables{i}.NormalAcceleration); end end

** simulateRecording** - Simulate the recording of truths by adding noise, lowering update rate, and dropping some measurements.

function recordedTruth = simulateRecording(scenario,gps,recordingProbability) arguments scenario (1,1) trackingScenario gps (1,1) gpsSensor recordingProbability (1,1) double {mustBeNonnegative,mustBeLessThanOrEqual(recordingProbability,1)} = 0.99 end truthTables = scenarioToTruth(scenario,UpdateRate=gps.SampleRate,includeVelocity=false,IncludeAcceleration=false); recordedTruth = truthTables; for i = 1:numel(truthTables) release(gps); truePosition = [truthTables{i}.Position]; trueVelocity = velocity(truthTables{i}); [posLLA,vel] = gps(truePosition,trueVelocity); posned = lla2ned(posLLA,[0 0 0],"ellipsoid"); recordedTruth{i}.Position = posned; recordedTruth{i}.Velocity = vel; includeInOutput = rand(size(truthTables{i},1),1) < recordingProbability; recordedTruth{i} = recordedTruth{i}(includeInOutput,:); end end

** smoothRecording** A function to smooth noisy recorded truth data. Note that it was exported from the Data Cleaner app, but includes a wrapper to handle multiple recorded truth tables.

function recordedTruth = smoothRecording(recordedTruth, timewindow) if isa(recordedTruth,'cell') recordedTruth = cellfun(@(t) smoothOneTruth(t,timewindow), recordedTruth, UniformOutput=false); else recordedTruth = smoothOneTruth(recordedTruth,timewindow); end end function oneTruth = smoothOneTruth(oneTruth, timewindow) oneTruth = splitvars(oneTruth,"Position",NewVariableNames=["Position_1","Position_2","Position_3"]); oneTruth = smoothdata(oneTruth,"gaussian",timewindow); oneTruth = mergevars(oneTruth,["Position_1","Position_2","Position_3"],... NewVariableName = "Position"); if ismember("Velocity",oneTruth.Properties.VariableNames) oneTruth = splitvars(oneTruth,"Velocity",NewVariableNames=["Velocity_1","Velocity_2","Velocity_3"]); oneTruth = smoothdata(oneTruth,"gaussian",timewindow); oneTruth = mergevars(oneTruth,["Velocity_1","Velocity_2","Velocity_3"],... NewVariableName = "Velocity"); end end
