SensorSimulation

Add sensors and access sensor data from scenario simulation

Since R2023a

expand all in page

Description

A SensorSimulation object represents a sensor in a scenario simulation. Use a SensorSimulation object to:

  • Add sensors to actors in a scenario

  • Retrieve sensor detection and lane boundary data during simulation

Creation

Retrieve the SensorSimulation object from a scenario simulation by using the get function of a ScenarioSimulation object with the "SensorSimulation" option.

Object Functions

addSensorsAdd sensors to vehicle actors in RoadRunner scenario
targetPosesGet positions and orientations of targets in sensor range relative to host vehicle
laneBoundariesGet lane boundaries relative to host vehicle

Examples

collapse all

This example uses:

Open Live Script

Define sensor models in MATLAB®, and add them to vehicle actors in a RoadRunner Scenario. Then, obtain ground truth measurements from RoadRunner Scenario, process them into detections for visualization.

Set Up RoadRunner Scenario — MATLAB Interface

Configure your RoadRunner installation and project folder properties. Open the RoadRunner app.

rrInstallationPath = "C:\Program Files\RoadRunner R2024a\bin\win64";
rrProjectPath = "D:\RR\TestProjects";

s = settings;
s.roadrunner.application.InstallationFolder.PersonalValue = rrInstallationPath;
rrApp = roadrunner(rrProjectPath);

To open the scenario this example uses, you must add the TrajectoryCutIn-longRun.rrscenario file from the example folder to your RoadRunner project folder. Then, open the scenario.

copyfile("TrajectoryCutIn-longRun.rrscenario",fullfile(rrProjectPath,"Scenarios/"))
openScenario(rrApp,"TrajectoryCutIn-longRun")

Create a ScenarioSimulation object to connect MATLAB to the RoadRunner Scenario simulation and set the step size.

scenarioSim = createSimulation(rrApp);
stepSize = 0.1;
set(scenarioSim,"StepSize",stepSize);

Create a SensorSimulation object to control the sensor configuration for the RoadRunner Scenario simulation.

sensorSim = get(scenarioSim,"SensorSimulation");

Configure Sensors and Add to RoadRunner Scenario

Configure sensor models for vision, radar and lidar sensors to add to the ego vehicle using visionDetectionGenerator, drivingRadarDataGenerator and lidarPointCloudGenerator objects. Specify unique IDs for each sensor.

visionSensor = visionDetectionGenerator(SensorIndex=1, ...
            SensorLocation=[2.4 0], MaxRange=50, ...
            DetectorOutput="Lanes and objects", ...
            UpdateInterval=stepSize);

radarSensor = drivingRadarDataGenerator(SensorIndex=2,...
    MountingLocation=[1.8 0 0.2], FieldOfView=[80 5],...
    AzimuthResolution=1,UpdateRate=1/stepSize);

lidarSensor = lidarPointCloudGenerator(SensorIndex=3,UpdateInterval=stepSize);

Add the sensor to the ego vehicle actor in the RoadRunner scenario. Specify the Actor ID property for the vehicle.

egoVehicleID = 1;
addSensors(sensorSim,{visionSensor,radarSensor,lidarSensor},egoVehicleID);

Set up bird's-eye-plot for visualization.

[visionDetPlotter,radarDetPlotter,pcPlotter,lbGTPlotter,lbDetPlotter,bepAxes] = helperSetupBEP(visionSensor,radarSensor);

Simulate RoadRunner Scenario and Visualize Sensor Data

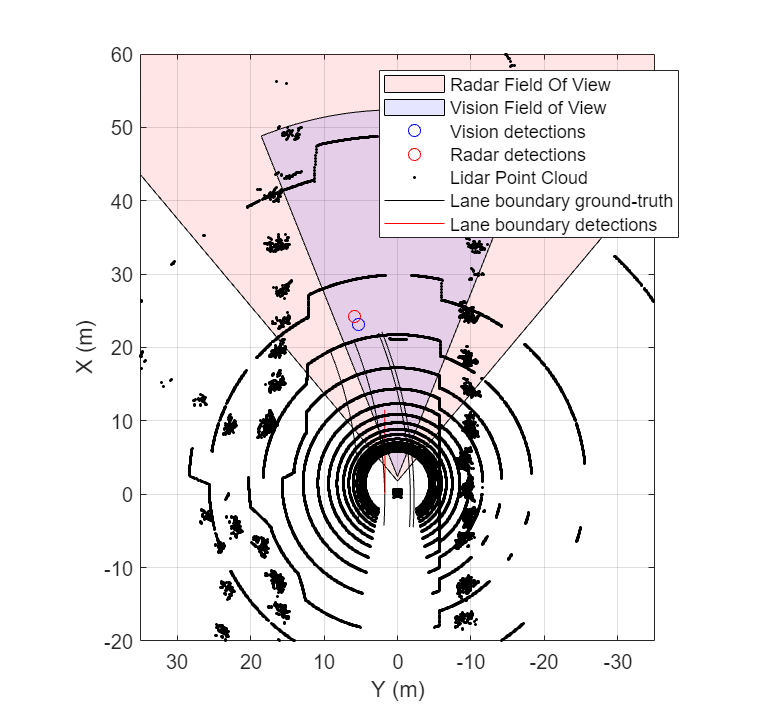

Use the ScenarioSimulation object to step through the RoadRunner scenario. Retrieve target poses in the sensor range using the targetPoses function, and process them into detections using the sensor model. Visualize detections and ground truth lane boundaries using birdsEyePlot.

simTime = 0.0;
set(scenarioSim,"SimulationCommand","Step");
pause(0.1)
legend(bepAxes,"show")

while ~isequal(get(scenarioSim,"SimulationStatus"),"Stopped")

    % Get ground truth target poses and lane boundaries from the sensor
    tgtPoses = targetPoses(sensorSim,1);
    gTruthLbs = laneBoundaries(sensorSim,1,OutputOption="EgoAdjacentLanes",inHostCoordinate=true);

    if ~isempty(gTruthLbs)

        % Get detections from vision and radar sensors
        [visionDets,numVisionDets,visionDetsValid,lbDets,numLbDets,lbDetsValid] = visionSensor(tgtPoses,gTruthLbs,simTime);
        [radarDets,numRadarDets,radarDetsValid] = radarSensor(tgtPoses,simTime);

        % Get point cloud from lidar sensor
        [ptCloud,ptCloudValid] = lidarSensor();

        % Plot ground-truth and detected lane boundaries
        helperPlotLaneBoundaries(lbGTPlotter,gTruthLbs)


        % Plot vision and radar detections
        if visionDetsValid
            detPos = cellfun(@(d)d.Measurement(1:2),visionDets,UniformOutput=false);
            detPos = vertcat(zeros(0,2),cell2mat(detPos')');
            plotDetection(visionDetPlotter,detPos)
        end

        if lbDetsValid
            plotLaneBoundary(lbDetPlotter,vertcat(lbDets.LaneBoundaries))
        end

        if radarDetsValid
            detPos = cellfun(@(d)d.Measurement(1:2),radarDets,UniformOutput=false);
            detPos = vertcat(zeros(0,2),cell2mat(detPos')');
            plotDetection(radarDetPlotter,detPos)
        end

        % Plot lidar point cloud
        if ptCloudValid
            plotPointCloud(pcPlotter,ptCloud);
        end
    end

    if ~isequal(get(scenarioSim,"SimulationStatus"),"Stopped")
        set(scenarioSim,"SimulationCommand","Step");
    end

    simTime = simTime + stepSize;
    pause(0.1)
end

Helper Functions

helperSetupBEP function creates a bird's-eye-plot and configures all the plotters for visualization.

helperPlotLaneBoundaries function plots the lane boundaries on the birds'eye-plot.

Version History

Introduced in R2023a
