Deep Learning HDL Processing System
Libraries:
Description
The Deep Learning HDL Processing System block simulates the deep learning
processor IP core and models, simulates, and validates the hand-shaking logic between the pre-
and post-processing systems and the deep learning processor IP core. The block icon changes
depending on the RunTimeControl
property setting of the
dlhdl.ProcessorConfig
object. To access the block at the MATLAB® command line,
enter:
open_system('dlhdllib')
RunTimeControl Setting | Block Icon |
---|---|
Register | ![]() |
Port | ![]() |

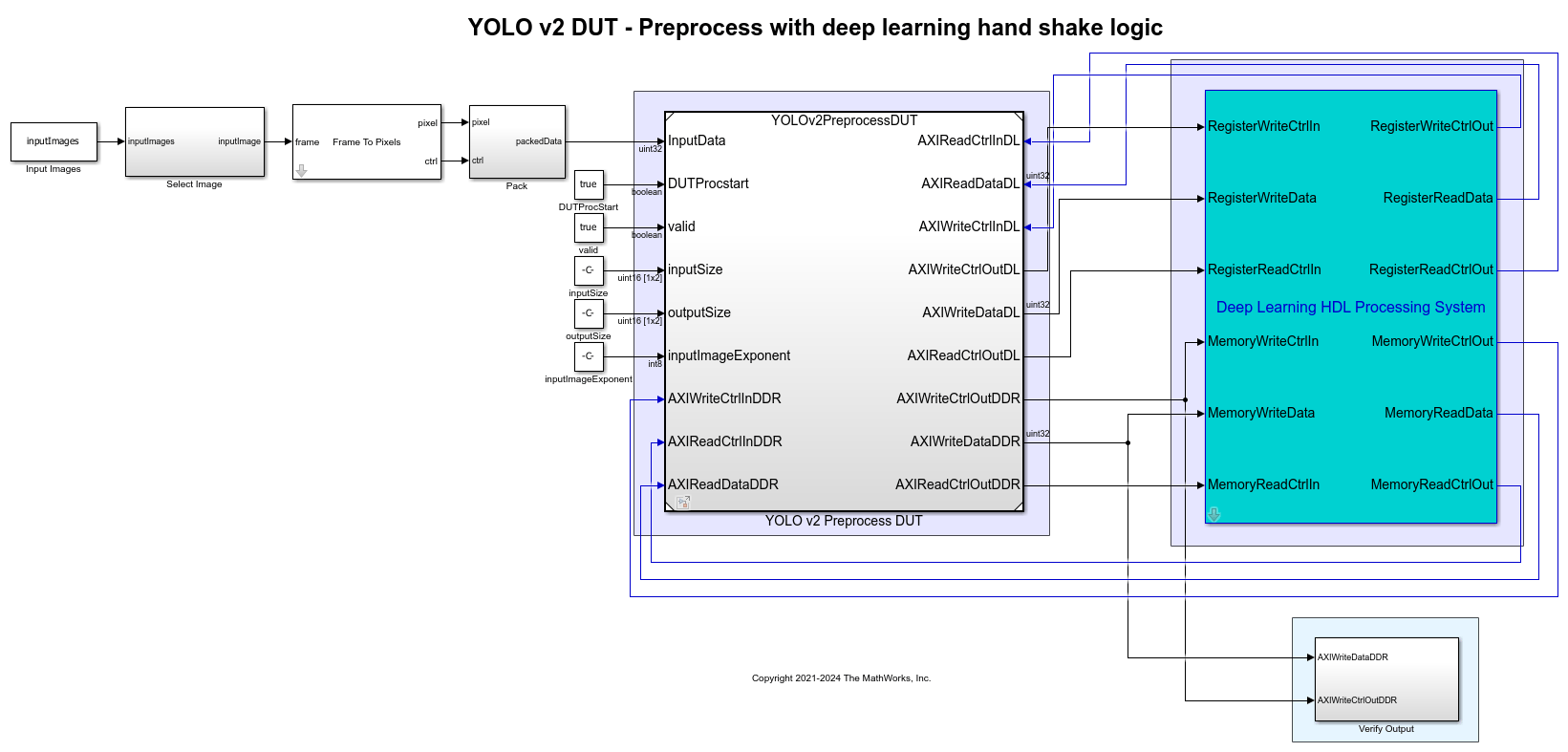

Examples
Limitations
Batch processing mode for the deep learning processor IP core is not supported for simulation.
The data type of the
dlhdl.ProcessorConfig
data type must be set tosingle
. Theint8
data type is not supported.The top-level properties of the
dlhdl.ProcessorConfig
object must all be set to"Port"
or"Register"
. A mix of port and register parameter settings is not supported.Multiple input networks are not supported.
Ports
Input
RegisterWriteCtrlIn — Input write data control bus
bus
Input write data control bus, specified as a bus. The bus control signals are of
type BusAXIWriteCtrlM2S
and includes these signals:
Signal Name | Data Type |
---|---|
wr_addr | uint32 scalar |
wr_len | uint32 scalar |
wr_valid | Boolean scalar |
Data Types: BusAXIWriteCtrlM2S
RegisterWriteData — Input data
scalar | vector
Input data, specified as a scalar or vector.
Data Types: uint32
RegisterReadCtrlIn — Input read data control bus
bus
Input data read control bus, specified as a bus. The bus control signals are of
type BusAXIReadCtrlM2S
and includes these signals:
Signal Name | Data Type |
---|---|
rd_addr | uint32 scalar |
rd_len | uint32 scalar |
rd_avalid | boolean scalar |
rd_dready | boolean scalar |
Data Types: BusAXIReadCtrlM2S
MemoryWriteCtrlIn — Input DDR memory write data control bus
bus
Input DDR memory write data control bus, specified as a bus. The bus control
signals are of type BusAXIWriteCtrlM2S
and includes these
signals:
Signal Name | Data Type |
---|---|
wr_addr | uint32 scalar |
wr_len | uint32 scalar |
wr_valid | Boolean scalar |
Data Types: BusAXIWriteCtrlm2S
MemoryWriteData — Input DDR memory data
scalar | vector
Input DDR memory data specified as a scalar or vector.
Data Types: ufix128
MemoryReadCtrlIn — Input DDR memory read data control bus
bus
Input DDR memory read data control bus, specified as a bus. The bus data type is
BusAXIReadCtrlM2S
and includes these signals:
Signal Name | Data Type |
---|---|
rd_addr | uint32 scalar |
rd_len | uint32 scalar |
rd_avalid | boolean scalar |
rd_dready | boolean scalar |
Data Types: BusAXIReadCtrlM2S
InputStart — Data processing start signal
scalar
Data processing start signal, specified as a boolean.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
FrameCount — Number of input data frames
scalar
Number of input data frames, specified as a int32
scalar.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: int32
InputStop — Data streaming stop signal
scalar
Data streaming stop signal, specified as a boolean.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
InputNext — Next input frame ready signal
scalar
Next input frame ready signal, specified as a boolean.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
OutputNext — Current output data read complete signal
scalar
Current output data read complete signal, specified as a boolean.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
Output
RegisterWriteCtrlOut — Output data write control bus
bus
Output data write control bus, returned as a bus. The bus control signals are of
type BusAXIWriteCtrlS2M
and includes these signals:
Signal Name | Data Type |
---|---|
wr_ready | boolean scalar |
wr_complete | boolean scalar |
Data Types: BusAXIWriteCtrlS2M
RegisterReadData — Output data
scalar | vector
Output data returned as a scalar or vector.
Data Types: uint32
RegisterReadCtrlOut — Output data read control bus
bus
Output data read control bus, returned as a bus. The bus control signals are of
type BusAXIReadCtrlS2M
and includes these signals:
Signal Name | Data Type |
---|---|
rd_aready | boolean scalar |
rd_dvalid | boolean scalar |
Data Types: BusAXIReadCtrlS2M
MemoryWriteCtrlOut — Output DDR memory data write control bus
bus
Output DDR memory data write control bus, returned as a bus. The bus control
signals are of type BusAXIWriteCtrlS2M
and includes these
signals:
Signal Name | Data Type |
---|---|
wr_ready | boolean scalar |
wr_complete | boolean scalar |
Data Types: BusAXIWriteCtrlS2M
MemoryReadData — Output DDR memory data
scalar | vector
Output DDR memory data returned as a scalar or vector.
Data Types: ufix128
MemoryReadCtrlOut — Output DDR memory data read control bus
bus
Output DDR memory data read control bus, returned as a bus. The bus control
signals are of type BusAXIReadCtrlS2M
and includes these
signals:
Signal Name | Data Type |
---|---|
rd_aready | boolean scalar |
rd_dvalid | boolean scalar |
Data Types: BusAXIReadCtrlS2M
InputAddr — Input data memory address signal
scalar
Input data memory address signal returned, as a uint32
scalar.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: uint32
InputSize — Size of next input data frame
scalar
Size of next input data frame, returned as a uint32
scalar. The
input data frame size is measured in bytes.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: uint32
InputValid — Input data valid signal
scalar
Input data valid signal, returned as a boolean.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
OutputAddr — Processed output data memory address signal
scalar
Processed output data memory address signal, returned as a
uint32
scalar.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: uint32
OutputSize — Size of next output data frame signal
scalar
Size of next output data frame signal, returned as a uint32
scalar. Use this signal when the OutputValid
signal is on.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: uint32
OutputValid — Output data valid signal
scalar
Output data valid signal, returned as a boolean scalar.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
Done — Data processing complete signal
scalar
Data processing complete signal, returned as a boolean scalar.
Dependencies
To enable this port, set the RunTimeControl
property of the
dlhdl.ProcessorConfig
object to "port"
.
Data Types: Boolean
Parameters
Network — Name of network object
Network from MATLAB function
(default) | Network from MAT-FILE
Name of network object, specified as one of these options:
Network from MATLAB function
— Provide the name of the MATLAB function that returns a network object.Network from MAT-file
— Provide the path to the MAT-file that stores the network object.
MATLAB Function — Name of network MATLAB function
getDigitsNetwork
(default)
Name of the MATLAB function that returns a network object.
Dependencies
To enable this parameter, set Network to
Network from MATLAB function
.
File Path — Path to MAT-file
untitled.mat
(default)
Path to MAT-file that contains the network object.
Dependencies
To enable this parameter, set Network to
Network from MAT-file
.
Activation Layer — Name of network activation layer
pool10
(default)
Name of network activation layer to simulate. The default activation layer is the last layer of the network object specified by the Network parameter.
Maximum input frame number limit for memory access allocation — Maximum input frame number limit
30 (default) | positive scalar
Maximum input frame number limit to calculate DDR memory access allocation.
Processor Configuration Properties
Import Processor Configuration from MATLAB workspace — Enable import of existing dlhdl.ProcessorConfig
object
dlhdl.ProcessorConfig
(default) | dlhdl.ProcessorConfig('Bitstream','zcu102_single')
| dlhdl.ProcessorConfig('Bitstream','arria10soc_single')
| dlhdl.ProcessorConfig('Bitstream','zc706_single')
Import an existing dlhdl.ProcessorConfig
object. if you specify
a function name, it must be a MATLAB function. For example, this MATLAB function returns a dlhdl.ProcessorConfig
object called
hPCinMATLAB
.
function hPCinMATLAB = hPCinMATLAB() hPC = dlhdl.ProcessorConfig; hPC.RunTimeControl = "port"; hPCinMATLAB = hPC; end
After you add the MATLAB function name or dlhdl.ProcessorConfig
object, click
Apply to import the processor configuration or MATLAB configuration into the block.
Export Processor Configuration to MATLAB workspace — Enable export of dlhdl.ProcessorConfig
object
hPCInSimulink
(default)
Export a dlhdl.ProcessorConfig
object. The default object name
is hPCInSimulink
.
Module Generation — Enable or disable convolution module generation
on (default) | off
Enable or disable convolution module generation. Use this parameter to control generation of the convolution module as a part of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
LRN Block Generation — Enable or disable local response normalization (LRN) block generation
off (default) | on
Enable or disable LRN block generation. Use this parameter to control generation of the LRN block as a part of the convolution module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Segmentation Block Generation — Enable or disable segmentation block generation
on (default) | off
Enable or disable segmentation block generation. Use this parameter to control generation of the segmentation block as a part of the convolution module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Convolution Thread Number — Number of parallel convolution processor kernel threads
16 (default) | 4 | 9 | 16 | 25 | 36 | 49 | 64
Number of parallel convolution processor kernel threads.
This parameter is the number of parallel 3-by-3 convolution kernel threads that
are a part of the conv
module in the
dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Input Memory Size — Input memory cache block RAM (BRAM) size
[227 227 3] (default) | 3-D positive integer array
This parameter is read-only.
Input memory cache BRAM size. This parameter is a 3-D matrix that represents the
maximum input image size permitted by the BRAM of the conv
module
in the dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Output Memory Size — Output memory cache block RAM (BRAM) sizes
[227 227 3] (default) | 3-D positive integer array
Output memory cache BRAM size.
This parameter is a 3-D matrix that represents the maximum output image size
permitted by the BRAM of the conv
module in the
dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Feature Size Limit — Maximum input and output feature size
2048 (default) | positive integer
Maximum input and output feature size.
This parameter is a positive integer that represents the maximum input and output
feature size as a part of the conv
module in the
dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Module Generation — Enable or disable fully connected module generation
on (default) | off
Enable or disable fully connected module generation. Use this parameter to control generation of the fully connected module as a part of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Softmax Block Generation — Enable or disable Softmax block generation
off (default) | on
Enable or disable Softmax block generation. Use this parameter to control generation of the Softmax block as a part of the fully connected module of the deep learning processor configuration. When you clear this parameter, the Softmax layer is still implemented in software.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
FC Thread Number — Number of parallel fully connected (fc) MAC threads
4 (default) | 4 | 8 | 16
Number of parallel fully connected (FC) MAC threads. This parameter is the number
of parallel FC MAC threads that are a part of the fc
module in the
dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Input Memory Size — Input memory cache block RAM (BRAM) sizes
25088 (default) | unsigned integer
Input memory cache BRAM size. This parameter is an unsigned integer that
represents the input cache memory size permitted by the BRAM of the
fc
module in the dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Output Memory Size — Cache block RAM (BRAM) sizes
4096 (default) | unsigned integer
Output memory cache BRAM size. This parameter is an unsigned integer that
represents the output cache memory size permitted by the BRAM of the
fc
module in the dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Module Generation — Enable or disable custom module generation
on (default) | off
Enable or disable custom module generation. Use this parameter to control generation of the adder module as a part of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Addition — Enable or disable addition layer generation
on (default) | off
Enable or disable addition layer generation. Use this parameter to control generation of the addition layer as a part of the custom module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Multiplication — Enable or disable multiplication layer generation
on (default) | off
Enable or disable multiplication layer generation. Use this parameter to control generation of the multiplication layer as a part of the custom module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Resize2D — Enable or disable 2-D resize layer generation
off (default) | on
Enable or disable 2-D resize layer generation. Use this parameter to control generation of the 2-D resize layer as a part of the custom module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Sigmoid — Enable or disable sigmoid layer generation
off (default) | on
Enable or disable sigmoid layer generation. Use this parameter to control generation of the sigmoid layer as a part of the custom module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
TanhLayer — Enable or disable tanh
layer generation
off (default) | on
Enable or disable tanh
layer generation. Use this parameter to
control generation of the tanh
layer as a part of the custom module
of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
MishLayer — Enable or disable mish
layer generation
off (default) | on
Enable or disable mish
layer generation. Use this parameter to
control generation of the mish
layer as a part of the custom module
of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
SwishLayer — Enable or disable swish
layer generation
off (default) | on
Enable or disable swish
layer generation. Use this parameter to
control generation of the swish
layer as a part of the custom
module of the deep learning processor configuration.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Input Memory Size — Input memory cache block RAM (BRAM) sizes
40 (default) | unsigned integer
Input memory cache BRAM size. This parameter is an unsigned integer that
represents the input cache memory size permitted by the BRAM of the
custom
module in the dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Output Memory Size — Output memory cache block RAM (BRAM) sizes
120 (default) | unsigned integer
Output memory cache BRAM size. This parameter is an unsigned integer that
represents the input cache memory size permitted by the BRAM of the
custom
module in the dlhdl.ProcessorConfig
object.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Choose Processinf Mode of All Interface Signals — Select the interface type for all deep learning processor IP core interface signals
register
(default) | port
This parameter is read-only.
Select the interface type for all deep learning processor IP core interface signals. Specify whether the run-time input signals, run-time feedback signals, input interface control input signals, and input interface control feedback signals are implemented as registers or ports.
Dependencies
To enable and edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
RunTimeControl — Deep learning processor IP core mode setting
register
(default) | port
This parameter is read-only.
Deep learning processor IP core mode setting. Specify whether the run-time input signals to the deep learning processor IP core are implemented as registers or ports.
RunTimeStatus — Feedback signals from deep learning processor IP core control
register
(default) | port
This parameter is read-only.
Feedback signals from deep learning processor IP core control. Specify whether the run-time output signals from the deep learning processor IP core are implemented as registers or ports.
InputStreamControl — Deep learning processor IP core input interface control
register
(default) | port
This parameter is read-only.
Deep learning processor IP core input interface control.
OutputStreamControl — Deep learning processor IP core output interface control
register
(default) | port
This parameter is read-only.
Deep learning processor IP core output interface control.
SetupControl — Deep learning processor IP core user interface control
register
(default) | port
This parameter is read-only.
Deep learning processor IP core user interface control.
ProcessorDataType — Deep learning processor IP core module data type
single
(default)
Deep learning processor IP core module data type.
Dependencies
To edit this parameter, enable Export Processor Configuration to MATLAB Workspace.
Export Deep Learning Processor IP Core Register addresses to MATLAB workspace — Export register addresses
on (default) | off
This parameter is read-only.
Enable this option to export a structure containing address locations to the MATLAB workspace.
Version History
Introduced in R2023b
MATLAB-Befehl
Sie haben auf einen Link geklickt, der diesem MATLAB-Befehl entspricht:
Führen Sie den Befehl durch Eingabe in das MATLAB-Befehlsfenster aus. Webbrowser unterstützen keine MATLAB-Befehle.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
