This example shows how to accelerate MATLAB® algorithm execution using a generated MEX function. It uses the
codegen command to generate a MEX function for a complicated application that uses multiple MATLAB files. You can use
codegen to check that your MATLAB code is suitable for code generation and, in many cases, to accelerate your MATLAB algorithm. You can run the MEX function to check for run-time errors.
There are no prerequisites for this example.

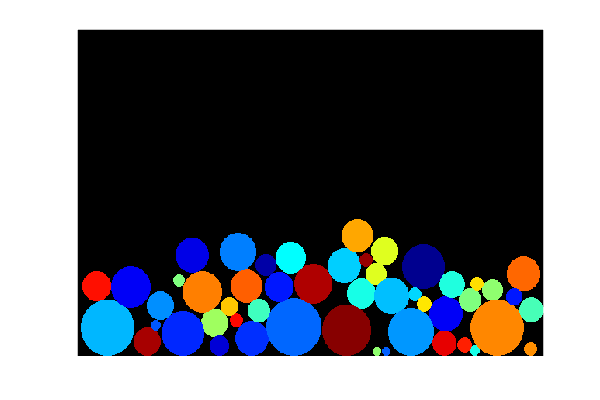

run_balls.m function takes a single input to specify the number of bouncing balls to simulate. The simulation runs and plots the balls bouncing until there is no energy left and returns the state (positions) of all the balls.
% balls = run_balls(n) % Given 'n' number of balls, run a simulation until the balls come to a % complete halt (or when the system has no more kinetic energy). function balls = run_balls(n) %#codegen coder.extrinsic('fprintf'); % Copyright 2010-2013 The MathWorks, Inc. % Seeding the random number generator will guarantee that we get % precisely the same simulation every time we call this function. old_settings = rng(1283,'V4'); % The 'cdata' variable is a matrix representing the colordata bitmap which % will be rendered at every time step. cdata = zeros(400,600,'uint8'); % Setup figure windows im = setup_figure_window(cdata); % Get the initial configuration for 'n' balls. balls = initialize_balls(cdata, n); energy = 2; % Something greater than 1 iteration = 1; while energy > 1 % Clear the bitmap cdata(:,:) = 0; % Apply one iteration of movement [cdata,balls,energy] = step_function(cdata,balls); % Render the current state cdata = draw_balls(cdata, balls); iteration = iteration + 1; if mod(iteration,10) == 0 fprintf(1, 'Iteration %d\n', iteration); end refresh_image(im, cdata); end fprintf(1, 'Completed iterations: %d\n', iteration); % Restore RNG settings. rng(old_settings);
First, generate a MEX function using the command
codegen followed by the name of the MATLAB file to compile. Pass an example input (
-args 0) to indicate that the generated MEX function will be called with an input of type double.
codegen run_balls -args 0
Code generation successful.
run_balls function calls other MATLAB functions, but you need to specify only the entry-point function when calling
codegen generates a MEX function named
run_balls_mex in the current folder. This allows you to test the MATLAB code and MEX function and compare the results.
Run and time the original
run_balls function followed by the generated MEX function.
tic, run_balls(50); t1 = toc;
Iteration 10 Iteration 20 Iteration 30 Iteration 40 Iteration 50 Iteration 60 Iteration 70 Iteration 80 Iteration 90 Iteration 100 Iteration 110 Iteration 120 Iteration 130 Iteration 140 Iteration 150 Iteration 160 Iteration 170 Iteration 180 Iteration 190 Iteration 200 Iteration 210 Iteration 220 Iteration 230 Iteration 240 Iteration 250 Iteration 260 Iteration 270 Iteration 280 Completed iterations: 281
tic, run_balls_mex(50); t2 = toc;
Iteration 10 Iteration 20 Iteration 30 Iteration 40 Iteration 50 Iteration 60 Iteration 70 Iteration 80 Iteration 90 Iteration 100 Iteration 110 Iteration 120 Iteration 130 Iteration 140 Iteration 150 Iteration 160 Iteration 170 Iteration 180 Iteration 190 Iteration 200 Iteration 210 Iteration 220 Iteration 230 Iteration 240 Iteration 250 Iteration 260 Iteration 270 Iteration 280
Completed iterations: 281
Estimated speed up is:
fprintf(1, 'Speed up: x ~%2.1f\n', t1/t2);
Speed up: x ~2.0
