Plot electric or magnetic fields of antenna
the quiver object, using either of the previous syntaxes.
qobj = fieldsCustom(___)

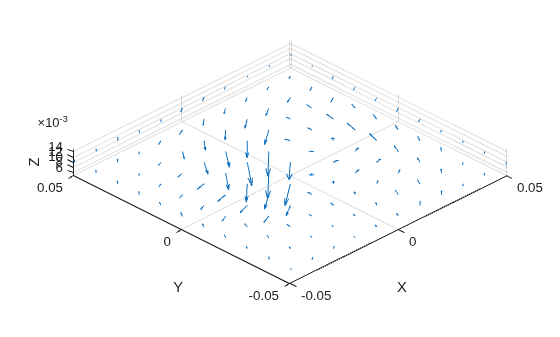

Load and visualize the magnetic field data available in the file '
load fielddata fieldsCustom(H,p)

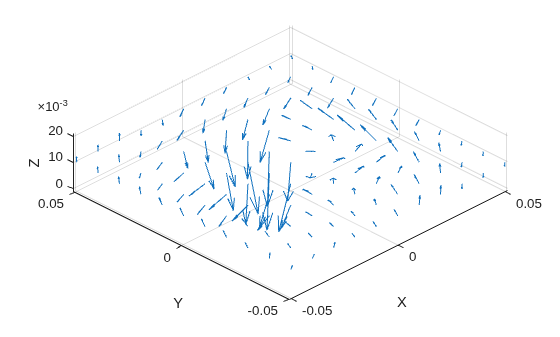

Scale the magnetic field arrows by a factor of 2.
fields— Electric or magnetic field vectors
Electric or magnetic field vectors, specified as a 3-by-p complex matrix. p is the number of points in space.
zcoordinates in space
x, y, z coordinates in space, specified as a 3-by-p real matrix. p is the number of points in space.
axeshandle— Axes object
Axes object, specified as an object.
scalefield— Value by which to scale field arrows
Value by which to scale the field arrows, specified as a scalar.
A value of
2 doubles the relative
length of the field arrows. A value of
the length of the field arrows. A value of
the field arrows without automatic scaling.
qobj— Electric or magnetic field plot
Electric or magnetic field plot, returned as quiver object.
