Use Default OFDM Sample Rate and Custom FFT Size

This example explains how the OFDM functions (nrOFDMModulate, nrOFDMInfo, and nrOFDMDemodulate) set the default value for the sample rate input, SampleRate, when you call an OFDM function and these conditions apply.

  • You do not specify a value for the SampleRate input or you specify 'SampleRate',[].

  • You specify a custom value for the fast Fourier transform (FFT) size input, Nfft.

Default OFDM Sample Rate

The default value set for the SampleRate input is equal to:

  • Nfft * carrier.SubcarrierSpacing * 1000.

Custom FFT Size

The value that you set for the Nfft input must satisfy these conditions.

  • Nfft is an integer value resulting in integer-valued cyclic prefix lengths.

  • Nfft is an integer power of 2.

  • Nfft results in a maximum occupancy of 100%. The actual occupancy is equal to carrier.NSizeGrid * 12 / Nfft, where carrier is the input argument of the function call, specifying the carrier configuration.

Plot Bandwidth Occupancy

Create a carrier configuration object.

carrier = nrCarrierConfig;

Set the Nfft for each NSizeGrid value to give an occupancy of at most 90%.

nSizeGrids = 1:275;
userNfftOccupancy = zeros(1,275);
sampleRate = zeros(1,275);
for nSizeGrid = nSizeGrids
    carrier.NSizeGrid = nSizeGrid;
    nfft = 128 * ceil(carrier.NSizeGrid * 12 / 0.9 / 128);
    ofdmInfo = nrOFDMInfo(carrier,'Nfft',nfft);
    userNfftOccupancy(nSizeGrid) = carrier.NSizeGrid * 12 / ofdmInfo.Nfft;
    sampleRate(nSizeGrid) = ofdmInfo.SampleRate / 1e6;
end

Plot the resulting occupancy.

figure;
plot(nSizeGrids,userNfftOccupancy,'x');
title({'Bandwidth Occupancy for Default SampleRate' 'with Nfft Selected for Maximum Occupancy of 90%'});
axis([1 275 0 1]);
xlabel('NSizeGrid');
xticks([1 52 106 160 216 275]);
ylabel('Bandwidth Occupancy (NSizeGrid * 12 / Nfft)');

Figure contains an axes object. The axes object with title Bandwidth Occupancy for Default SampleRate with Nfft Selected for Maximum Occupancy of 90% contains an object of type line.

Plot the resulting sample rate.

figure;
plot(nSizeGrids,sampleRate,'x');
title({'Default SampleRate' 'with Nfft Selected for Maximum Occupancy of 90%'});
axis([1 275 0 max(sampleRate)]);
xlabel('NSizeGrid');
xticks([1 52 106 160 216 275]);
ylabel('Sample Rate (Ms/s)');

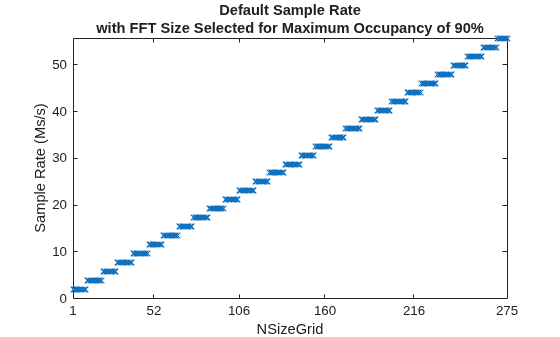

Figure contains an axes object. The axes object with title Default SampleRate with Nfft Selected for Maximum Occupancy of 90% contains an object of type line.
