Rotate
Rotate image by specified angle
Libraries:
Computer Vision Toolbox /
Geometric Transformations
Description
Use the Rotate block to rotate a grayscale or color image by an angle specified in radians.

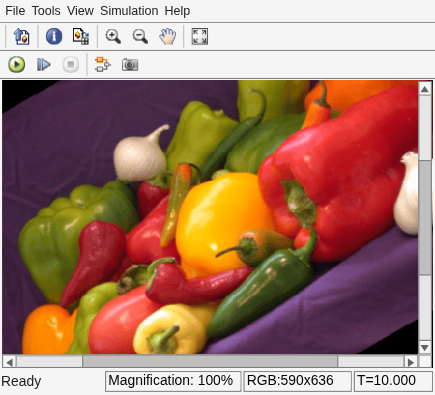

Examples
Ports
Input
Image — Image to rotate
matrix | array
Image to rotate, specified as a 2-D numeric matrix for a grayscale image or 3-D numeric array for a color image.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| fixed point
Angle — Rotation angle
scalar
Rotation angle, specified as a numeric scalar, in radians.
If the input to the Image port is of data type
single
, double
, or fixed
point
, then the input to the Angle port must be of
the same data type.
If the input to the Image port is of a signed or unsigned integer data type, then the input to the Angle port must be of a signed integer data type.
Dependencies
To enable this port, set the Rotation angle source
parameter to Input port
.
Data Types: single
| double
| int8
| int16
| int32
| fixed point
Output
Output — Rotated image
matrix | array
Rotated image, returned as 2-D numeric matrix if the input image is a grayscale image and a 3-D numeric array if the input image is a color image.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| fixed point
Parameters
Main
Output size — Size of rotated image
Expanded to fit rotated input image
(default) | Same as input image
Specify the size of the rotated image as one of these options.
Expanded to fit rotated input image
- The block outputs a matrix or array expanded to contain all values.Same as input image
- The block outputs a matrix or array the same size as the input image, which contains the middle part of the rotated image. This can result in the block cropping the edges of the rotated image.
Use the Background fill value parameter to specify the color or intensity value of pixels outside the rotated image.
Rotation angle source — Rotation angle source
Specify via dialog
(default) | Input port
Specify the source of the rotation angle as one of these options.
Specify via dialog
- Specify the rotation angle using the Angle (radians) parameter.Input port
- Specify the rotation angle using the Angle port. The block uses the input to this port as the rotation angle at each time step.
Angle (radians) — Rotation angle
pi/6
(default) | numeric scalar
Specify the rotation angle in radians.
When the rotation angle is a multiple of pi/2
, the block uses a
more efficient algorithm. If the specified value for the Angle
(radians) parameter is within 1e-5
radians of a
multiple of pi/2
, the block rounds the angle value to that multiple
of pi/2
before performing the rotation.
Dependencies
To enable this parameter, set the Rotation angle source
parameter to Specify via dialog
.
Maximum angle (enter pi radians to accommodate all positive and negative angles) — Maximum angle of rotation
pi
(default) | nonnegative scalar less than or equal to pi
Specify the maximum angle by which to rotate the input image as a scalar value in
the range [0
, pi
], in radians. The block
determines which angle, between 0
and the specified maximum angle,
requires the largest output size and sets the dimensions of the output port
accordingly.
Dependencies
To enable this parameter, specify these parameter values.
Output size —
Expanded to fit rotated input image
Rotation angle source —
Input port
Display rotated image in — Position of output image
Top-left corner
(default) | Center
Specify the position of the rotated image in the output image. If you select
Top-left corner
, the block positions the rotated image so
that it has corners in contact with the top and left sides of the output image. If you
select Center
, the output image displays the rotated image
at its center.
Dependencies
To enable this parameter, set the Rotation angle source
parameter to Input port
.
Sine value computation method — Sine value computation method
Table lookup
(default) | Trigonometric function
Specify the sine value computation method. If you select
Trigonometric function
, the block computes the sine and
cosine values required to calculate the rotation of the image during the simulation.
If you select Table lookup
, the block computes and
stores the trigonometric values required to calculate the rotation of the image before
the simulation starts. For this method, the block requires extra memory.
Background fill value — Background fill value
numeric scalar | three-element numeric vector
Specify a value for the pixels that are outside the image.
If the input image is grayscale, the value of Background fill
value must be a numeric scalar. The default value is 0
for grayscale images. If the input image is a color image, the value of
Background fill value must be a three-element numeric vector.
The default value is [0 0 0]
for color images.
Interpolation method — Interpolation method
Bilinear
(default) | Nearest neighbor
| Bicubic
Specify which interpolation method the block uses to rotate the image from these options.
Nearest neighbor
- The block uses the value of one nearby pixel for the new pixel value.Bilinear
- The new pixel value is the weighted average of the 4 nearest pixel values.Bicubic
- The new pixel value is the weighted average of the 16 nearest pixel values.
The number of pixels the block considers affects the complexity of the
computation. Therefore, the Nearest neighbor
interpolation
is the most computationally efficient. However, because the accuracy of the method is
proportional to the number of pixels considered, the
Bicubic
method is the most accurate.
Data Types
For details on general fixed-point block parameters, see Specify Fixed-Point Attributes for Blocks (DSP System Toolbox).
Angle values — Fixed-point parameter for angle values
Same word length as input
(default) | Specify word length
| Binary point scaling
Choose how to specify the word length and the fraction length of the angle values.
Dependencies
To enable this parameter, set the Rotation angle source
parameter to Specify via dialog
.
Lock data type settings against change by the fixed-point tools — Prevent fixed-point tools from overriding data types
off
(default) | on
Select this parameter to prevent the fixed-point tools from overriding the data types you specify in this block. For more information, see Lock the Output Data Type Setting (Fixed-Point Designer).
Block Characteristics
Data Types |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Algorithms
The Rotate block uses the three-pass shear rotation algorithm to compute
its values, which differs from the algorithm used by the imrotate
function in the Image Processing Toolbox™.
References
[1] Wolberg, George. Digital Image Warping. IEEE Computer Society Press Monograph. Los Alamitos, Calif: IEEE Computer Society Press, 1992.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced before R2006a
