Matrix To Image
Libraries:
Computer Vision Toolbox OpenCV Interface for Simulink
Description
The Matrix To Image block converts matrix data to Simulink® image data.
Examples

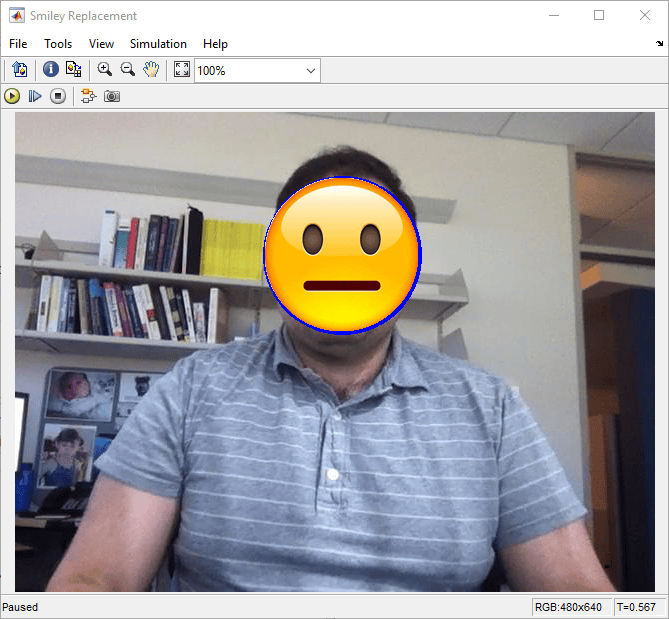

Smile Detection by Using OpenCV Code in Simulink
Build a smile detector by using the OpenCV Importer app. The detector estimates the intensity of the smile on a face image or a video. Based on the estimated intensity, the detector identifies an appropriate emoji from its database, and then places the emoji on the smiling face.
Convert RGB Image to Grayscale Image by Using OpenCV Importer
Convert an RGB image to a grayscale image by using the OpenCV Importer app. The converter converts an RGB image to a grayscale image by eliminating the hue and saturation information while retaining the luminance.

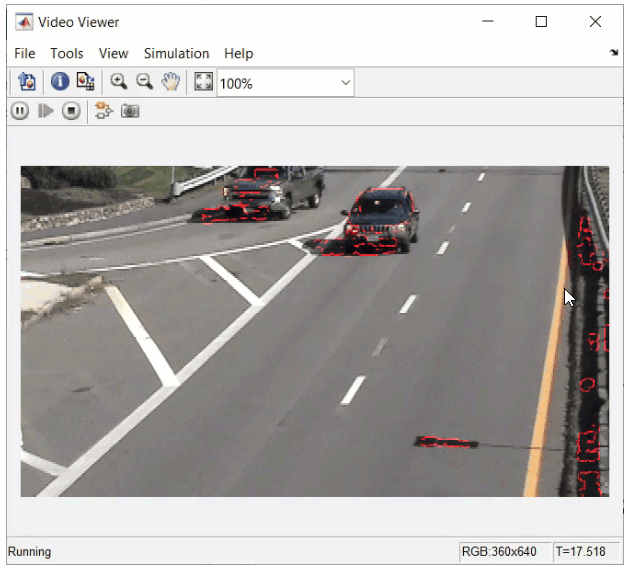

Shadow Detection by Using OpenCV Code in Simulink
Detect shadows in a recorded video by using the OpenCV Importer app.
Ports
Input
Port_1 — Input signal
matrix
Input signal to the Matrix To Image block. The input is a numerical matrix.
Data Types: uint8
| uint16
| int8
| int16
| single
| double
Output
Port_1 — Output signal
Simulink.ImageType
Output signal from the Matrix To Image block. The output is an
image in Simulink.ImageType
data type.
Data Types: Simulink.ImageType
Parameters
Rows — Number of rows in image data
'480'
(default) | positive integer
Specify the number of rows in the image data as a positive integer.
Programmatic Use
Block Parameter:
Rows |
Type:
double |
Value: positive integer |
Default:
'480'
|
Columns — Number of columns in image data
'640'
(default) | positive integer
Specify the number of columns in the image data as a positive integer.
Programmatic Use
Block Parameter:
Columns |
Type:
double |
Value: positive integer |
Default:
'640'
|
Channels — Number of color channels or samples for each pixel in the array
3
(default) | 1
Specify the number of color channels or samples for each pixel in the array as
1
or 3
. The number of channels must correspond
to the number of color channels in the color format of the image data. These are the
values of Channels for the supported color formats:
Channels | Color Format |
---|---|
1 | Grayscale |
3 | RGB |
3 | BGR |
Programmatic Use
Block Parameter:
Columns |
Type: character vector |
Value: positive integer |
Default:
'3'
|
Underlying Datatype — Data type of underlying image data
'uint8'
(default) | 'int8'
| 'uint16'
| 'int16'
| 'uint32'
| 'int32'
| 'single'
| 'double'
| 'logical'
Specify the data type of the underlying image data as one of these options:
'uint8'
'int8'
'uint16'
'int16'
'uint32'
'int32'
'single'
'double'
'logical'
Programmatic Use
Block Parameter:
ClassUnderlying |
Type: character vector |
Value:
'uint8' | 'int8' | 'uint16'
| 'int16' | 'uint32' |
'int32' | 'single' |
'double' | 'logical' |
Default:
'uint8'
|
Array Layout — Memory arrangement of matrix data in image
'Column-major'
(default) | 'Row-major'
Specify the memory arrangement of the matrix data in the image as
Column-major
or Row-major
.
Programmatic Use
Block Parameter:
Layout |
Type: character vector |
Value:
'Column-major' | 'Row-major' |
Default:
'Column-major'
|
Color Format — Color format of pixels in underlying image data
'RGB'
(default) | 'Grayscale'
| 'BGR'
Specify what each color channel of a pixel represents in the underlying image data
as Grayscale
, RGB
, or
BGR
.
Programmatic Use
Block Parameter:
ColorFormat |
Type: character vector |
Value:
'Grayscale' | 'RGB' |
'BGR' |
Default:
'RGB'
|
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Supports C++ code generation.
Version History
Introduced in R2021b
