Fixed Wing Aircraft

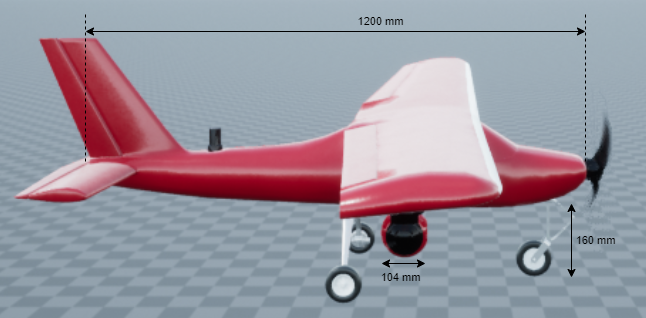

Fixed wing aircraft dimensions

Description

Fixed-wing aircraft isometric view.

Fixed Wing Aircraft is one of the vehicles that you can use within the Unreal Engine® simulation environment. This environment is rendered using the Unreal Engine from Epic Games®. The origin is located at the center of the camera gimbal located on the underside of the aircraft. For detailed specifications of the vehicle dimensions , see the Dimensions section.

To add this type of vehicle to the 3D simulation environment:

  1. Add a Simulation 3D UAV Vehicle block to your Simulink® model.

  2. In the block, set the Type parameter to Fixed wing.

Dimensions

expand all

Overhead diagram of fixed-wing aircraft

Sensor Mounting Locations
