Memory Operations
R2026bMemory operation blocks support all Texas Instruments® C2000™ microcontrollers.
Blocks
 | Memory Allocate | Allocate memory for new variable |
 | Memory Copy | Copy data from and to memory section |
 | Register Read/Write | Read from or write to various bit fields of TI C2000 Registers (Since R2024a) |
Model Settings
Featured Examples

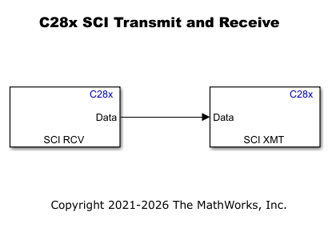

Serial Communication Using SCI Blocks
Use the SCI blocks to set up serial communication between the target hardware and your host computer for C2000™ Microcontroller Blockset.

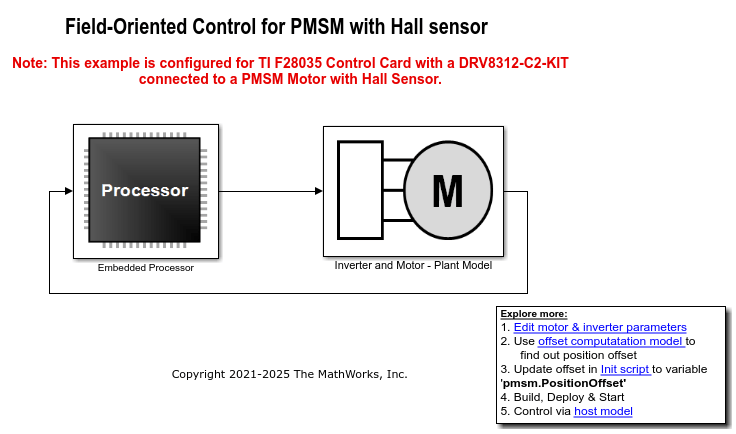

Field-Oriented Control of PMSM with Hall Sensor Using C2000 Processors
Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a Hall sensor. For details about FOC, see Field-Oriented Control (Motor Control Blockset).

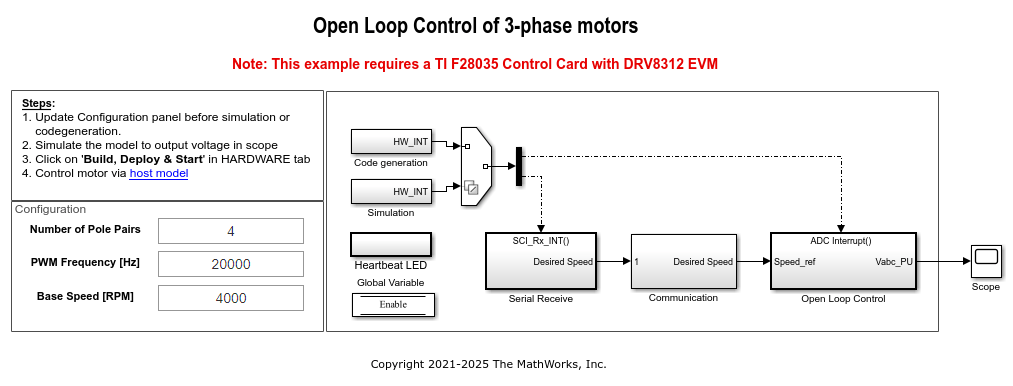

Open-Loop Control of 3-Phase AC Motors Using C2000 Processors
Uses open-loop control (also known as scalar control or Volts/Hz control) to run a motor. This technique varies the stator voltage and frequency to control the rotor speed without using any feedback from the motor. You can use this technique to check the integrity of the hardware connections. A constant speed application of open-loop control uses a fixed-frequency motor power supply. An adjustable speed application of open-loop control needs a variable-frequency power supply to control the rotor speed. To ensure a constant stator magnetic flux, keep the supply voltage amplitude proportional to its frequency.
