This example shows how to export an existing Simulink® model to a System Composer™ architecture model. The algorithmic sections of the original model are removed and structural information is preserved during this process. Requirements links, if any, are also preserved.
System Composer converts structural constructs in a Simulink model to equivalent architecture model constructs:
Subsystems to components
Variant subsystems to variant components
Bus objects to interfaces
Referenced models to reference components

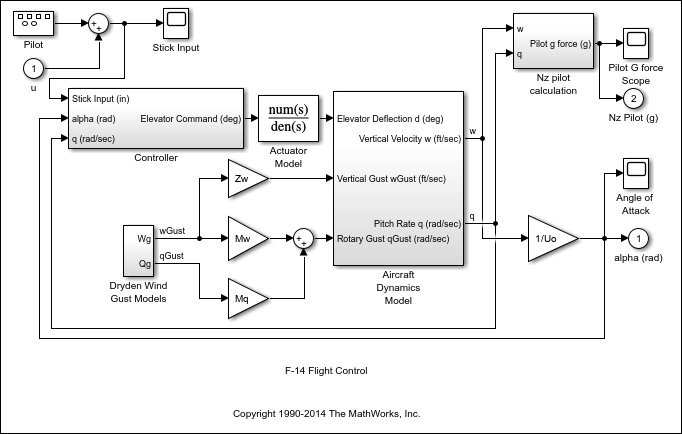

Open the Simulink model of a system.

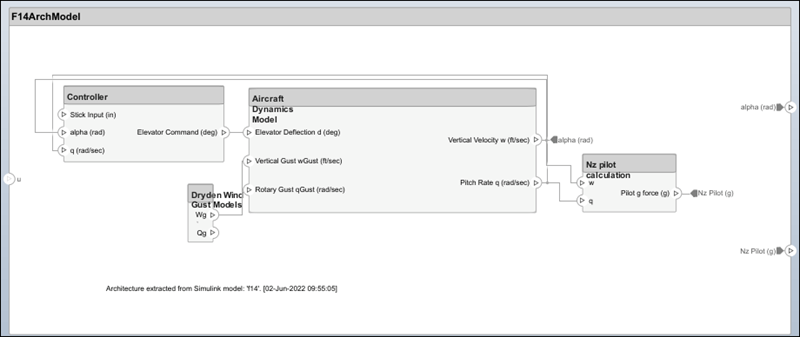

Extract an architecture model from the original model.
To simulate this example from start to finish, run in the Command Window:
