Negative loglikelihood functions for supported Statistics and Machine
Learning Toolbox™ distributions all end with
like, as in
explike. Each function represents a parametric family of distributions.
Input arguments are lists of parameter values specifying a particular member of the
distribution family followed by an array of data. Functions return the negative
loglikelihood of the parameters, given the data.
To find maximum likelihood estimates (MLEs), you can use a negative loglikelihood
function as an objective function of the optimization problem and solve it by using the
fminsearch or functions in Optimization
Toolbox™ and Global Optimization
Toolbox. These functions allow you to choose a search algorithm and exercise
low-level control over algorithm execution. By contrast, the
mle function and the distribution fitting functions that end with
fit, such as
gamfit, use preset algorithms with
options limited to those set by the
Likelihoods are conditional probability densities. You can specify a parametric family of distributions by using a function f(x,a), where x and a represent a random variable and parameters, respectively. When a is fixed, the function is the probability density function (pdf) at x, f(x|a). When x is fixed, the function is the likelihood of the parameters a, f(a|x). The joint likelihood of the parameters over an independent random sample data set X is
Given X, MLEs maximize L(a) over all possible a. Numerical algorithms find MLEs that (equivalently) maximize the loglikelihood function, log(L(a)). The logarithm transforms the product of potentially small likelihoods into a sum of logs, which is easier to distinguish from 0 in computation. For convenience, Statistics and Machine Learning Toolbox negative loglikelihood functions return the negative of this sum because optimization algorithms typically search for minima rather than maxima.
rng default; % For reproducibility a = [1,2]; X = gamrnd(a(1),a(2),1e3,1);

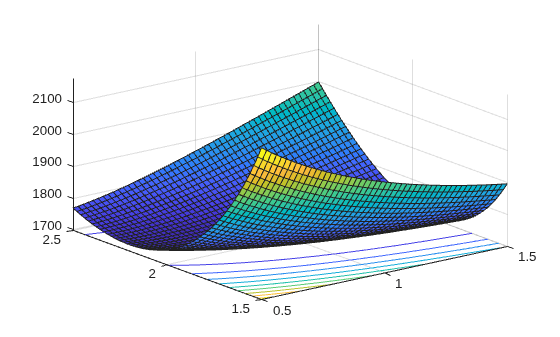

Visualize the likelihood surface in the neighborhood of
X by using the
mesh = 50; delta = 0.5; a1 = linspace(a(1)-delta,a(1)+delta,mesh); a2 = linspace(a(2)-delta,a(2)+delta,mesh); logL = zeros(mesh); % Preallocate memory for i = 1:mesh for j = 1:mesh logL(i,j) = gamlike([a1(i),a2(j)],X); end end [A1,A2] = meshgrid(a1,a2); surfc(A1,A2,logL)
Search for the minimum of the likelihood surface by using the
LL = @(u)gamlike([u(1),u(2)],X); % Likelihood given X MLES = fminsearch(LL,[1,2])
MLES = 1×2 0.9980 2.0172
MLES to the estimates returned by the
ahat = gamfit(X)
ahat = 1×2 0.9980 2.0172
The difference of each parameter between
ahat is less than

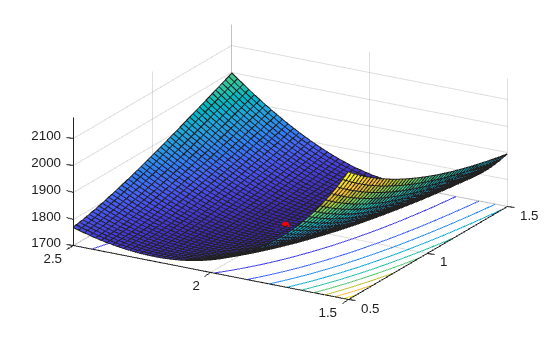

Add the MLEs to the surface plot.
hold on plot3(MLES(1),MLES(2),LL(MLES),'ro','MarkerSize',5,'MarkerFaceColor','r') view([-60 40]) % Rotate to show the minimum
