SIL-, PIL- und HIL-Tests
Sie können die Ergebnisse Ihres Modells mit dem generierten Code vergleichen, indem Sie Äquivalenztests in verschiedenen Umgebungen ausführen, beispielsweise in der Modellsimulation und in der SIL-, PIL- oder HIL-Ausführung. Äquivalenztests werden manchmal auch als Back-to-Back-Tests bezeichnet. Um Testfälle und Testrahmen automatisch zu erstellen, können Sie den Assistenten „Create Test for Model Component“ verwenden.
Themen
- Analyze Code and Perform Software-in-the-Loop Testing
Detect code errors, generate code metrics, test code and model equivalence, test code against requirements.
- SIL Verification for a Subsystem
Perform SIL verification programmatically by using test harnesses and the Simulation Data Inspector.
- Test Models in Real Time
Create a real-time application, download and execute it on the Simulink Real-Time target, and assess results.
- SCHRITT 1: Prepare for Real-Time Testing
- SCHRITT 2: Create and Run Real-Time Tests
- Reuse Desktop Test Cases for Real-Time Testing
Run real-time tests based on desktop test cases that use external inputs.
- Test a Simulation for Run-Time Errors
Use a simulation test case to test an anti-lock brake system for simulation run-time errors.
- Test Execution Order
Order in which models load, and test cases, iterations, and callbacks run.
Enthaltene Beispiele

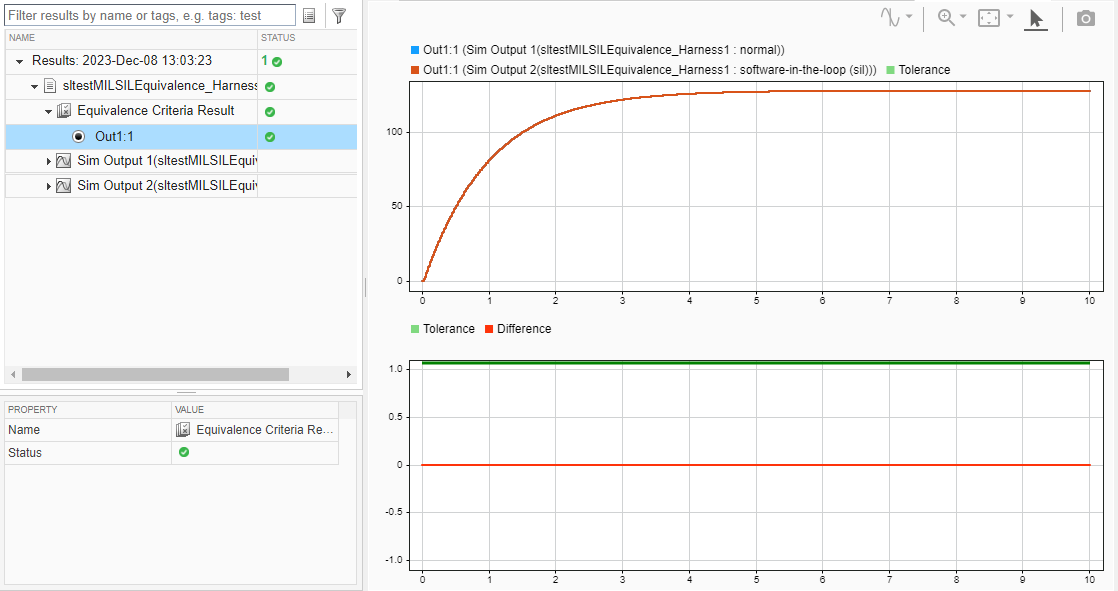

Back-to-Back (MIL/SIL) Equivalence Testing an Atomic Subsystem
Run back-to-back test on an atomic subsystem.

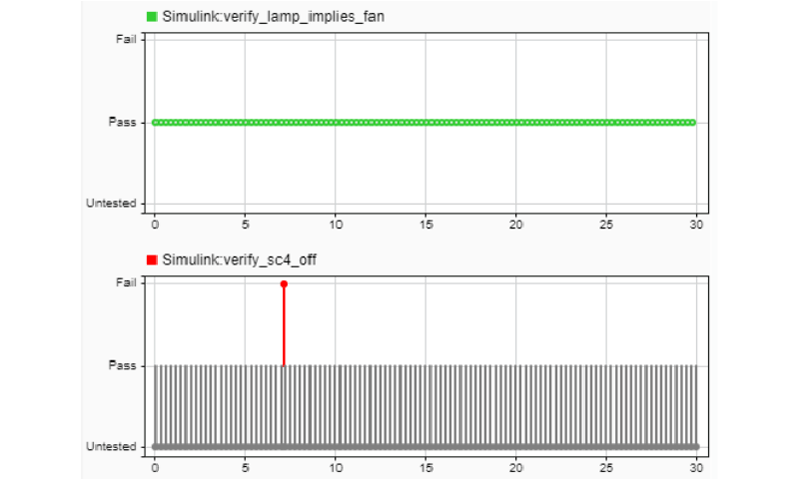

Projector Controller Testing Using verify and Real-Time Tests
Perform real-time testing on a target computer and verify system behavior against requirements.
