Legacy Serial Setup

Set up baseboard serial communications

• Library:

• Simulink Real-Time / RS232 / Mainboard

•

Description

The Legacy Serial Setup block sets up baseboard serial communications.

Parameters

Serial port — Select serial port

Legacy Serial Port 1 (default) | .. | Legacy Serial Port 8 | USB Serial Port 1 | .. | USB Serial Port 8

Select the RS232 serial port for communications. If using USB-to-serial adapters, the target computer detects these adapters as serusb1, serusb2, and so on in the order that the adapters are connected to the serial devices. The order of port assignment is retained through the power cycle of the target computer or serial device if there is no change in the connections to the ports.

Programmatic Use

port

Baud rate — Select serial port baud rate

115200 (default) | 57600 | 38400 | 19200 | 9600 | 4800 | 2400 | 1200 | 600 | 300 | 110

Use this value to select the serial port baud rate.

Programmatic Use

baud

Number of data bits — Select serial port data bits

8 (default) | 7 | 6 | 5

Use this value to select the number of serial port data bits.

Programmatic Use

width

Number of stop bits — Select serial port stop bits

1 (default) | 2

Use this value to select the number of serial port stop bits.

Programmatic Use

nstop

Parity — Select serial port parity

None (default) | Even | Odd | Mark | Space

Use this value to select serial port parity.

Programmatic Use

parity

Enable auto RTX/CTS — Select serial port RTX/CTS mode

off (default) | on

Use this value to select the serial port RTX/CTS mode.

Programmatic Use

ctsmode

Model Examples

ASCII Encoding/Decoding Loopback Test

Send ASCII data over a serial link.

Open Script

ASCII Encoding/Decoding Resync Loopback Test

Use the ability of the FIFO Read HDRS block to resynchronize after being repeatedly disabled and apply this ability to resolve errors such as when a message is only partially complete at the time the read is attempted.

Open Script

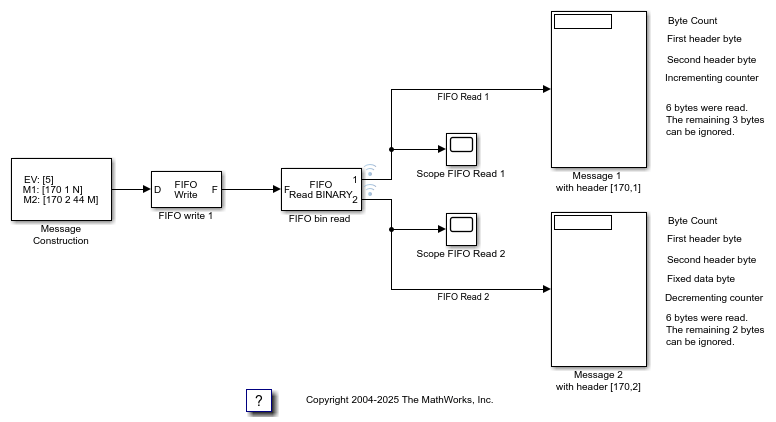

Binary Encoding/Decoding Loopback Test

Send Binary data over a serial link.

Open Script

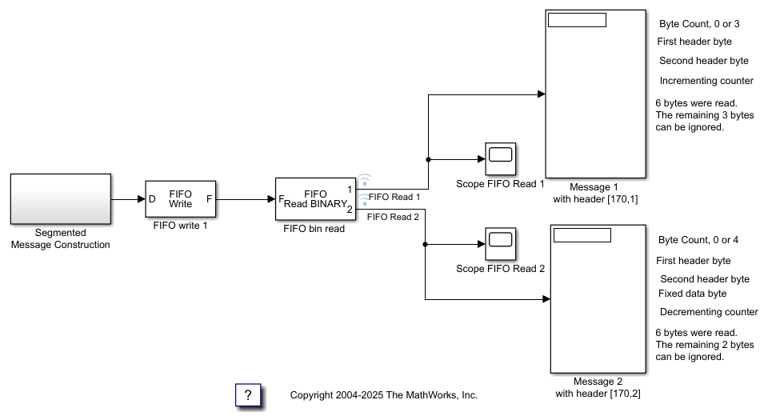

Binary Encoding/Decoding Resync Loopback Test

Use the ability of the FIFO Read BINARY block to handle messages that are interrupted and only partially complete.

Open Script

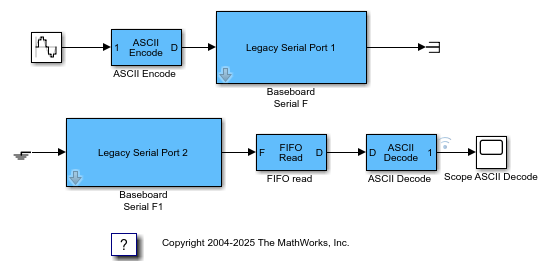

Simple ASCII Encoding/Decoding Loopback Test (with Baseboard Blocks)

Convert a single floating point number to ASCII and transmit the value over a serial link.

Open Script

ASCII Encoding/Decoding Loopback Test (with Baseboard Blocks)

Send ASCII data over a serial link.

Open Script

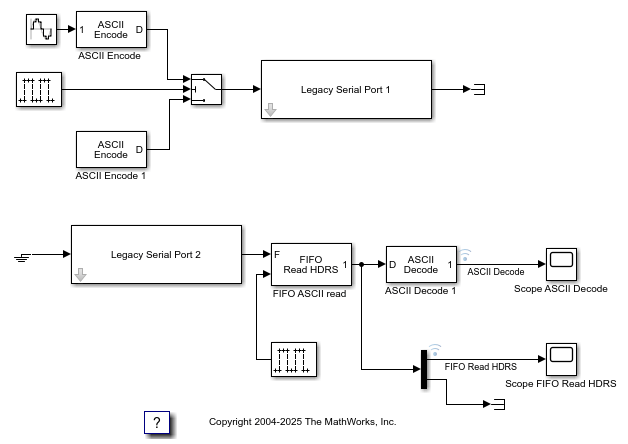

ASCII Encoding/Decoding Resync Loopback Test (with Baseboard Blocks)

Use the ability of the FIFO Read HDRS block to resynchronize after being repeatedly disabled and apply this ability to resolve errors such as when a message is only partially complete at the time the read is attempted.

Open Script

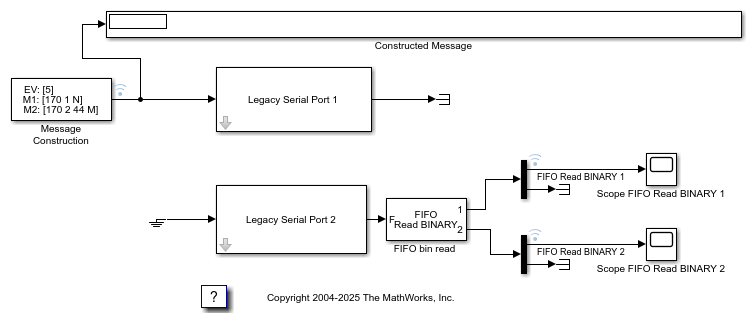

Binary Encoding/Decoding Loopback Test (with Baseboard Blocks)

Send Binary data over a serial link.

Open Script

Binary Encoding/Decoding Resync Loopback Test (with Baseboard Blocks)

Use the ability of the FIFO Read BINARY block to handle messages that are interrupted and only partially complete.

Open Script

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2020b

R2021b: USB to Serial for RS232 Blocks

The RS232 mainboard blocks support connecting USB serial adapter ports. The Serial port parameter of the Legacy Serial Read block, Legacy Serial Write block, Legacy Serial Setup block, Legacy Serial Port block, and Legacy Serial Port F block means that you can select a USB Serial Port or a Legacy Serial Port.
