This example shows how to use Simulink® Design Optimization™ to optimize the output response of a plant by tuning the LQR gain matrix and feed-forward gain. This model includes uncertainty in the plant model and accounts for this uncertainty in the optimization process.
lqg_demo model using the command below and run the simulation. The simulation produces an unoptimized response of the plant and the initial data for optimization. Double-click the Scope block to view the unoptimized response of the plant.

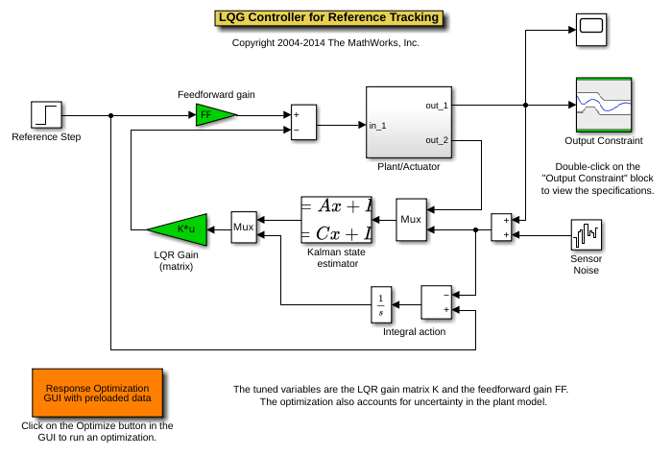

Plant/Actuator block to view the details of the subsystem. Note that the plant is represented in State-Space form in this model and includes Rate Limiter and Saturation blocks.
Output Constraint block to view constraints on the step response of the plant.
You can launch the Response Optimizer using the Apps menu in the Simulink toolstrip, or the

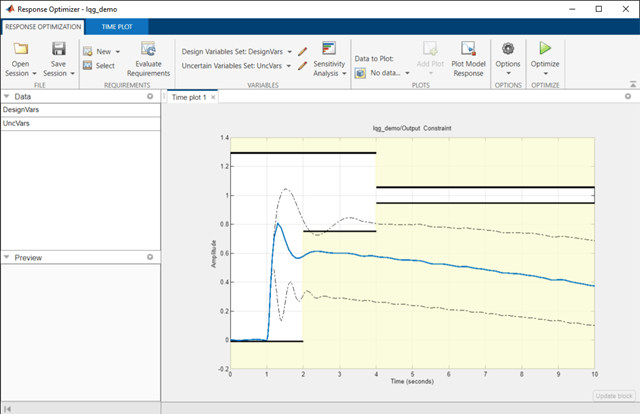

sdotool command in MATLAB. You can launch a pre-configured optimization task in the Response Optimizer by first opening the model and by double-clicking on the orange block at the bottom of the model. From the Response Optimizer, press the Plot Model Response button to simulate the model and show how well the initial design satisfies the design requirements.
The solid line in the plot indicates the plant response without considering the uncertainties and the dashed lines indicate the uncertain responses.

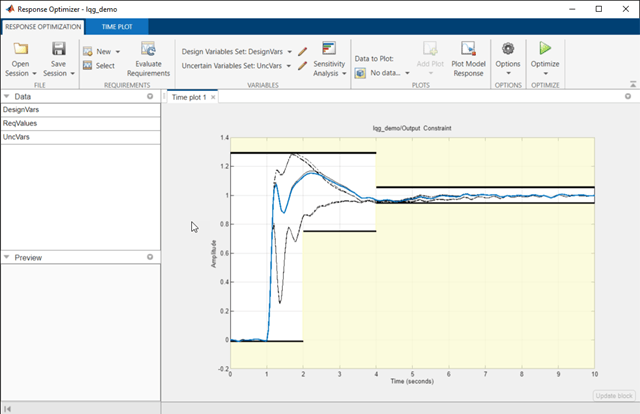

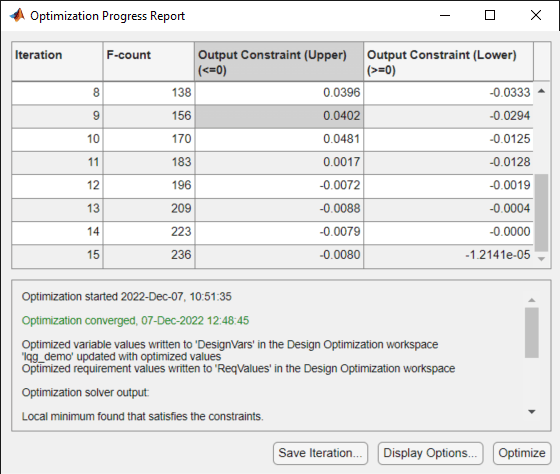

We start the optimization by pressing the Optimize button from the Response Optimizer. The plots are updated to indicate that the design requirements are now satisfied.
% Close the model bdclose('lqg_demo')
