CC-CV Charging (Proportional Control)

Constant-current constant-voltage charging algorithm with proportional control

Since R2025a

•

Libraries:
Simscape / Battery / BMS / Current Management

Description

The CC-CV Charging (Proportional Control) block implements a constant-current (CC), constant-voltage (CV) charging algorithm for a battery with proportional control. To implement the CC-CV charging algorithm with proportional-integral control, see the Battery CC-CV block.

This block supports single-precision and double-precision floating-point simulation.

Note

To enable inherited single-precision floating-point simulation, the data type of all inputs and parameters, except for the Sample time (-1 for inherited) parameter, must be single.

To configure the block for discrete time, set the Sample time (-1 for inherited) parameter to a positive, nonzero value. To inherit the sample time from an upstream block, set the Sample time (-1 for inherited) parameter to -1.

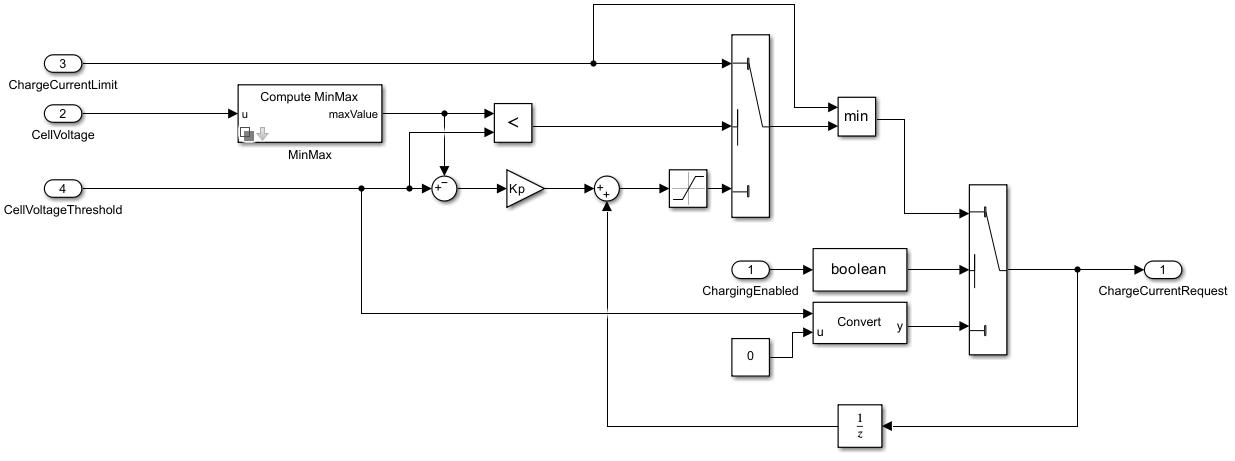

This diagram illustrates the overall structure of the block:

Equations

This block implements the CC-CV algorithm in constant-current and constant-voltage modes. This figure shows the operation of these modes:

This equation defines the battery charging current that the block outputs at the discrete-time instant k:

$$i_{\text{chg}}(k)=\{\begin{array}{cc}\text{Maximum}\text{charge}\text{current},& \text{if}\text{battery}\text{is}\text{charging}\text{and}{v}_{\max }<v_{\text{threshold}}\\ K_p\left(v_{\text{threshold}}-v_{\max }\right)+i_{\text{chg}}\left(k-1\right),& \text{if}\text{battery}\text{is}\text{charging}\text{and}{v}_{\max }\ge v_{\text{threshold}}\\ \text{0},& \text{if}\text{battery}\text{is}\text{not charging}\end{array}$$

where

• i_chg(k) is the charging current at time instant k.

• i_chg(k-1) is the charging current at the previous time instant.

• v_max is the voltage of the highest cell.

• v_threshold is the maximum allowable cell voltage.

• K_p is the value of the Controller proportional gain parameter.

Ports

Input

ChargingEnabled — Whether to enable battery charging

boolean

Whether to enable battery charging, specified as 1 (enabled) or 0 (disabled).

CellVoltage — Voltage of cells, V

scalar | vector

Voltage of the battery cells, specified as a scalar for a single cell or a vector for multiple cells.

If you select the Specify CellVoltage input as [Min,Max] parameter, you must specify a minimum and a maximum value for this port, for example CellVoltage=[CellVoltageMin,CellVoltageMax].

ChargeCurrentLimit — Limit of charging current, A

scalar

Limit of the current that the battery uses for charging, specified as a scalar.

CellVoltageThreshold — Current for discharging, V

scalar

Maximum allowable cell voltage, specified as a scalar.

Output

ChargeCurrentRequest — Charging current

scalar

Charging current command, returned as a scalar.

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Specify CellVoltage input as [Min,Max] — Option to specify CellVoltage input as minimum and maximum values

off (default) | on

Option to specify the value at the CellVoltage input port as a vector of minimum and maximum values. If you clear this parameter, you must specify an individual value for the input port. The block then calculates the minimum and maximum values internally.

Controller proportional gain — Proportional gain of controller

0.02 (default) | scalar

Proportional gain, K_p, of the controller.

Sample time (-1 for inherited) — Block sample time

1 (default) | -1 | positive integer

Time between consecutive block executions. During execution, the block produces outputs and, if appropriate, updates its internal state. For more information, see What Is Sample Time? and Specify Sample Time.

For inherited discrete-time operation, specify this parameter as -1. For discrete-time operation, specify this parameter as a positive integer.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2025a
