Read A ROS Scan Message In Simulink®
This example shows how to read in a laser scan message from a ROS network. Calculate the points in Cartesian coordinates and visualize with a 2D plot.
Start a ROS network.
rosinit
Launching ROS Core... Status before launching ros core :0 result before launching ros core: 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168156 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168158 pts/1 S+ 0:00 grep -E ros|python .Done in 1.2028 seconds. * Inside getProcessPID function * Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 Status before getting PID :0 Result before getting PID : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168181 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168183 pts/1 S+ 0:00 grep -E ros|python Result: 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 Status: 0 PID obtained: 168161 Status after getting PID :0 Result after getting PID : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168188 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168190 pts/1 S+ 0:00 grep -E ros|python * Exiting getProcessPID function * Status after launching ros core :0 result after launching ros core: 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168191 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168193 pts/1 S+ 0:00 grep -E ros|python Status before deleting node :0 Result before deleting node : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168194 ? Sl 0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 737 -1 -mvmOutputPipe -1 764 168209 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168211 pts/1 S+ 0:00 grep -E ros|python Status after deleting node :0 Result after deleting node : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168221 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168223 pts/1 S+ 0:00 grep -E ros|python Initializing ROS master on http://172.30.10.91:59689. Initializing global node /matlab_global_node_19243 with NodeURI http://dcc2479819glnxa64:35871/ and MasterURI http://localhost:59689.
Load a sample ROS LaserScan message. Create a publisher for the topic /scan and specify the message type as sensor_msgs/LaserScan. Publish the sample LaserScan message on this topic.
exampleHelperROSLoadScan pub = rospublisher("/scan","sensor_msgs/LaserScan",DataFormat="struct"); send(pub,scan)
Open the Simulink® model for subscribing to a published message and reading the scan message from ROS.
open_system("read_scan_example_model.slx")
Ensure that the Subscribe block is subscribing to the /scan topic.
The model reads the LaserScan message from the ROS network. The Read Scan block extracts range and angle data from the message. These are then fed to the plotXY MATLAB Function block which converts the ranges and angles to points in Cartesian coordinates and visualizes them on a plot. All NaN values are ignored.

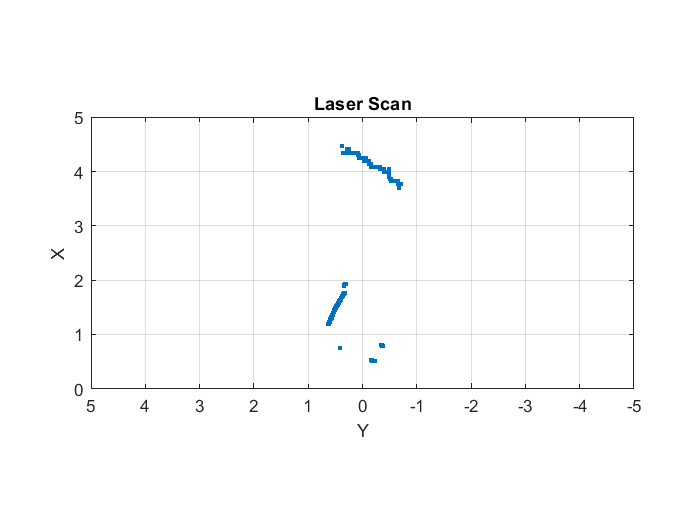

Run the model. The plot shows the points in the laser scan.
Shut down the ROS network.
rosshutdown
Shutting down global node /matlab_global_node_19243 with NodeURI http://dcc2479819glnxa64:35871/ and MasterURI http://localhost:59689. Status before deleting node :0 Result before deleting node : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168224 ? Sl 0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 737 -1 -mvmOutputPipe -1 764 168302 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168304 pts/1 S+ 0:00 grep -E ros|python Status after deleting node :0 Result after deleting node : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168308 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168310 pts/1 S+ 0:00 grep -E ros|python Shutting down ROS master on http://172.30.10.91:59689. Status before deleting core :0 Result before deleting core : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168161 pts/1 S 0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3168145_228640/tpc1e1f385_aadf_4739_a92f_4d9f968a3b89/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 59689 -w 3 168173 pts/1 Sl 0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 59689 -w 3 168311 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168313 pts/1 S+ 0:00 grep -E ros|python * Inside killProcessByPID function * PID of core to be killed: 168161 Status after Child Process Killed: 0 Result after Child Process Killed: Status after deleting core :0 Result after deleting core : 882 ? Ssl 7:13 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml 1456 ? Ssl 0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal 167195 ? Ss 0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167225 ? S 0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3168145_228640 COMPONENT=examples/ros ; cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/matlab/examples/ros/html ; //mathworks/hub/bat/common/bin/mw sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167238 ? S 0:00 sh ../../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3168145/build.glnxa64.3168145.r009/examples/ros/build.glnxa64.3168145.r009.bml.b27ce1f56c7c88b867133d20b65593f0 MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 167289 ? S 0:00 perl ../../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3168145/build/runnable/matlab --display ../../../derived/glnxa64/examples/ros/html/matlab_build_script/publish_examples0.m 168318 pts/1 S+ 0:00 /bin/bash -c ps ax | grep -E 'ros|python' 168320 pts/1 S+ 0:00 grep -E ros|python * Exiting killProcessByPID function *
