Linearize Simulink Block to Uncertain Model
This example shows how to make a Simulink® block linearize to an uncertain variable at the command line. To learn how to specify an uncertain block linearization using the Simulink model editor, see Specify Uncertain Linearization for Core or Custom Simulink Blocks.
For this example, open the Simulink model
mdl = 'slexAircraftExample'; open_system(mdl)
Examine the subsystem
Aircraft Dynamics Model.
subsys = [mdl,'/Aircraft Dynamics Model']; open_system(subsys)
Suppose you want to specify the following uncertain real values for the gain blocks
Mw_unc = ureal('Mw',-0.00592,'Percentage',50); Zd_unc = ureal('Zd',-63.9979,'Percentage',30);
To specify these values as the linearization for these blocks, create a
BlockSubs structure to pass to the
linearize function. The field names are the names of the Simulink blocks, and the values are the corresponding uncertain values. Note that in this model, the name of the
Mw block is
Gain4, and the name of the
Zd block is
Mw_name = [subsys,'/Gain4']; Zd_name = [subsys,'/Gain5']; BlockSubs(1).Name = Mw_name; BlockSubs(1).Value = Mw_unc; BlockSubs(2).Name = Zd_name; BlockSubs(2).Value = Zd_unc;
Compute the uncertain linearization.
linearize linearizes the model at operating point specified in the model, making the substitutions specified by
BlockSubs. The result is an uncertain state-space model with an uncertain real parameter for each of the two uncertain gains.
sys = linearize(mdl,BlockSubs)
Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 7 states. The model uncertainty consists of the following blocks: Mw: Uncertain real, nominal = -0.00592, variability = [-50,50]%, 1 occurrences Zd: Uncertain real, nominal = -64, variability = [-30,30]%, 1 occurrences Type "sys.NominalValue" to see the nominal value and "sys.Uncertainty" to interact with the uncertain elements.

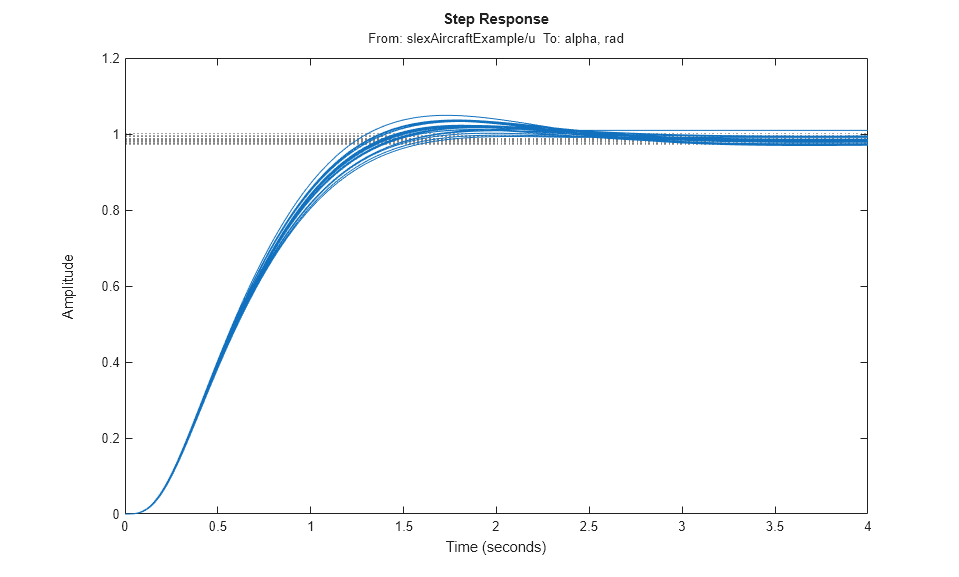

Examine the uncertain model response.
step takes random samples and provides a sense of the range of responses within the uncertainty of the linearized model.
