This example uses the Symbolic Math Toolbox™ to explain how the RF Toolbox™ extracts two-port S-parameters from an RF Toolbox circuit object.

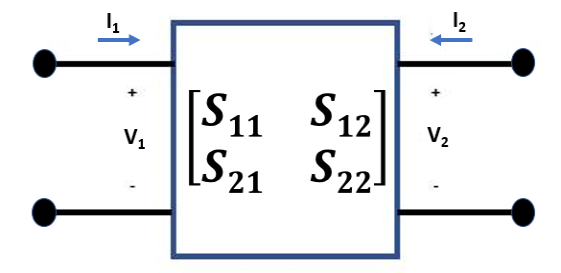

Consider a two-port network as shown in the figure 1that you want to characterize with S-parameters. S-parameters are defined as .
Figure 1: Two-Port Network
To extract the S-parameters from a circuit into an
sparameters object, the RF Toolbox terminates each port with the reference impedance . Then, the RF Toolbox independently drives each port j, with and solves for the port voltages . Driving with current sources is the Norton equivalent of driving with a 1 V source and a series resistance of .
Measure the port voltage at node i when node j is driven.
If i j, the S-parameter entry is simply twice the port voltage , and this is given using the equation .
The diagonal entries of S-parameters when are given using the equation .
Figure 2: Circuit Driven at Port 1 with Current Source
Circuits are represented in node-branch form in the RF Toolbox. There are four branches in the circuit represented in figure 2, one for the input port, two for the two-port
nport object, and one for the output port. This means that the circuit has four branch current unknowns , , , and and two node voltages and . To represent the circuit described in figure 2 in node-branch form, you need four constitutive equations to represent the branch currents and two conservative equations to represent the node voltages.
syms F IS I1 I2 IL V1 V2 Z0 syms S11 S12 S21 S22 nI = 4; % number of branch currents nV = 2; % number of node voltages % F = [Fconstitutive; Fconservative] F = [ V1 - Z0*IS V1 - Z0*I1 - S11*(V1+Z0*I1) - S12*(V2+Z0*I2) V2 - Z0*I2 - S21*(V1+Z0*I1) - S22*(V2+Z0*I2) V2 - Z0*IL IS+I1 I2+IL ]
jacobian function from the Symbolic Math Toolbox to compute the matrix of derivatives of the function
F with respect to the six unknowns (four branch currents and two node voltages)
J = jacobian(F,[IS; I1; I2; IL; V1; V2])
Create a two-column right-hand side vector,
rhs, to represent the driving of each port.
syms rhs [nI+nV 2] syms x v S % Compute S-parameters of cascade rhs(:,:) = 0; rhs(nI+1,1) = 1/Z0; % rhs for driving input port rhs(nI+nV,2) = 1/Z0 % rhs for driving output port
To solve for the voltages, back solve the
rhs with the Jacobian. The S-parameter matrix that MATLAB outputs represents the two-port circuit shown in figure 1.
x = J \ rhs; v = x(nI+[1 nV],:); S = 2*v - eye(2)
