Quadratic Programming with Bound Constraints: Problem-Based
This example shows how to formulate and solve a scalable bound-constrained problem with a quadratic objective function. The example shows the solution behavior using several algorithms. The problem can have any number of variables; the number of variables is the scale. For the solver-based version of this example, see Quadratic Minimization with Bound Constraints.
The objective function, as a function of the number of problem variables n, is
Create a problem variable named
x that has 400 components. Also, create an expression named
objec for the objective function. Bound each variable below by 0 and above by 0.9, except allow to be unbounded.
n = 400; x = optimvar('x',n,'LowerBound',0,'UpperBound',0.9); x(n).LowerBound = -Inf; x(n).UpperBound = Inf; prevtime = 1:n-1; nexttime = 2:n; objec = 2*sum(x.^2) - 2*sum(x(nexttime).*x(prevtime)) - 2*x(1) - 2*x(end);
Create an optimization problem named
qprob. Include the objective function in the problem.
qprob = optimproblem('Objective',objec);
Create options that specify the
'trust-region-reflective' algorithm and no display. Create an initial point approximately centered between the bounds.
opts = optimoptions('quadprog','Algorithm','trust-region-reflective','Display','off'); x0 = 0.5*ones(n,1); x00 = struct('x',x0);
Solve Problem and Examine Solution
Solve the problem.
[sol,qfval,qexitflag,qoutput] = solve(qprob,x00,'options',opts);

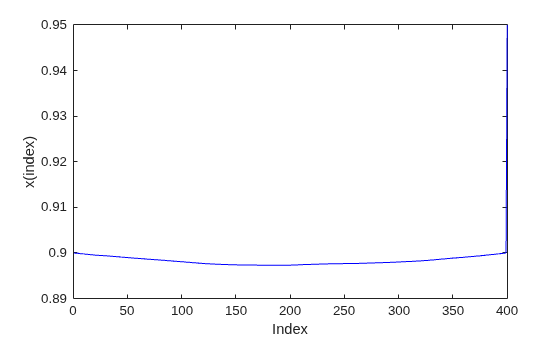

Plot the solution.
plot(sol.x,'b-') xlabel('Index') ylabel('x(index)')
Report the exit flag, the number of iterations, and the number of conjugate gradient iterations.
fprintf('Exit flag = %d, iterations = %d, cg iterations = %d\n',... double(qexitflag),qoutput.iterations,qoutput.cgiterations)
Exit flag = 3, iterations = 20, cg iterations = 1813
There were a lot of conjugate gradient iterations.
Adjust Options for Increased Efficiency
Reduce the number of conjugate gradient iterations by setting the
SubproblemAlgorithm option to
'factorization'. This option causes the solver to use a more expensive internal solution technique that eliminates conjugate gradient steps, for a net overall savings of time in this case.
opts.SubproblemAlgorithm = 'factorization'; [sol2,qfval2,qexitflag2,qoutput2] = solve(qprob,x00,'options',opts); fprintf('Exit flag = %d, iterations = %d, cg iterations = %d\n',... double(qexitflag2),qoutput2.iterations,qoutput2.cgiterations)
Exit flag = 3, iterations = 10, cg iterations = 0
The number of iterations and of conjugate gradient iterations decreased.
Compare Solutions With
Compare these solutions with that obtained using the default
'interior-point' algorithm. The
'interior-point' algorithm does not use an initial point, so do not pass
opts = optimoptions('quadprog','Algorithm','interior-point-convex','Display','off'); [sol3,qfval3,qexitflag3,qoutput3] = solve(qprob,'options',opts); fprintf('Exit flag = %d, iterations = %d, cg iterations = %d\n',... double(qexitflag3),qoutput3.iterations,0)
Exit flag = 1, iterations = 8, cg iterations = 0
middle = floor(n/2); fprintf('The three solutions are slightly different.\nThe middle component is %f, %f, or %f.\n',... sol.x(middle),sol2.x(middle),sol3.x(middle))
The three solutions are slightly different. The middle component is 0.897338, 0.898801, or 0.857389.
fprintf('The relative norm of sol - sol2 is %f.\n',norm(sol.x-sol2.x)/norm(sol.x))
The relative norm of sol - sol2 is 0.001116.
fprintf('The relative norm of sol2 - sol3 is %f.\n',norm(sol2.x-sol3.x)/norm(sol2.x))
The relative norm of sol2 - sol3 is 0.036007.
fprintf(['The three objective function values are %f, %f, and %f.\n' ... 'The ''interior-point'' algorithm is slightly less accurate.'],qfval,qfval2,qfval3)
The three objective function values are -1.985000, -1.985000, and -1.984963. The 'interior-point' algorithm is slightly less accurate.
