Implement Hardware-Efficient Complex Burst QR Decomposition
This example shows how to implement a hardware-efficient QR decomposition using the Complex Burst QR Decomposition block.
Economy Size QR Decomposition
The Complex Burst QR Decomposition block performs the first step of solving the least-squares matrix equation AX = B which transforms A in-place to R and B in-place to C = Q'B, then solves the transformed system RX = C, where QR is the orthogonal-triangular decomposition of A.
To compute the stand-alone QR decomposition, this example sets B to be the identity matrix so that the output of the Complex Burst QR Decomposition block is the upper-triangular R and C = Q'.
Define Matrix Dimensions
Specify the number of rows in matrices A and B, the number of columns in matrix A, and the number of columns in matrix B. This example sets B to be the identity matrix the same size as the number of rows of A.
m = 10; % Number of rows in matrices A and B n = 3; % Number of columns in matrix A p = m; % Number of columns in matrix B
Generate Matrices A and B
Use the helper function
complexUniformRandomArray to generate a random matrix A such that the real and imaginary parts of the elements of A are between -1 and +1, and A is full rank. Matrix B is the identity matrix.
rng('default') A = fixed.example.complexUniformRandomArray(-1,1,m,n); B = eye(m);
Select Fixed-Point Data Types
Use the helper function
qrFixedpointTypes to select fixed-point data types for matrices A and B that guarantee no overflow will occur in the transformation of A in-place to R and B in-place to C = Q'B.
The real and imaginary parts of the elements of A are between -1 and 1, so the maximum possible absolute value of any element is sqrt(2).
max_abs_A = sqrt(2); % Upper bound on max(abs(A(:)) max_abs_B = 1; % Upper bound on max(abs(B(:)) precisionBits = 24; % Number of bits of precision T = fixed.qrFixedpointTypes(m,max_abs_A,max_abs_B,precisionBits); A = cast(A,'like',T.A); B = complex(cast(B,'like',T.B));
Open the Model
model = 'ComplexBurstQRModel'; open_system(model);

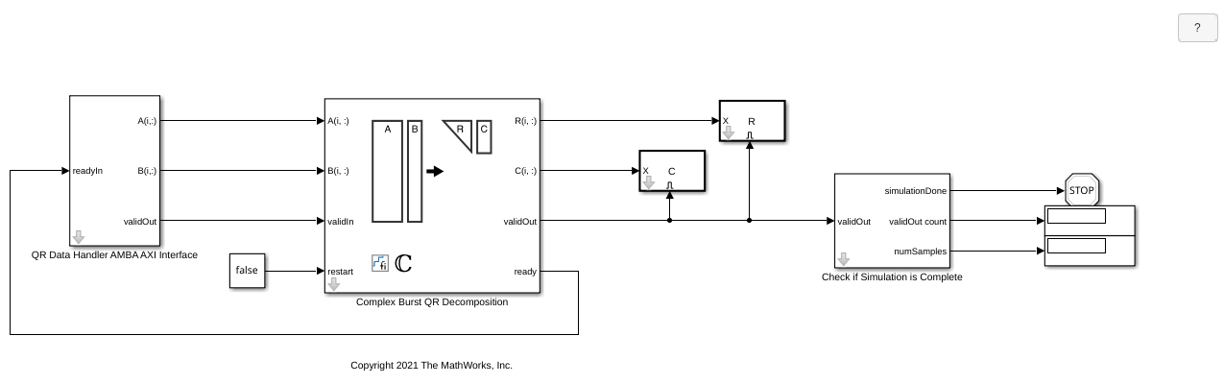

The Data Handler subsystem in this model takes complex matrices A and B as inputs. It sends rows of A and B to QR block using the AMBA AXI handshake protocol. The
validIn signal indicates when data is available. The
ready signal indicates that the block can accept the data. Transfer of data occurs only when both the
ready signals are high. You can set a delay between the feeding in rows of A and B in the Data Handler to emulate the processing time of the upstream block.
validIn remains high when
rowDelay is set to 0 because this indicates the Data Handler always has data available.
Set Variables in the Model Workspace
Use the helper function
setModelWorkspace to add the variables defined above to the model workspace. These variables correspond to the block parameters for the Complex Burst QR Decomposition block.
numSamples = 1; % Number of sample matrices rowDelay = 1; % Delay of clock cycles between feeding in rows of A and B fixed.example.setModelWorkspace(model,'A',A,'B',B,'m',m,'n',n,'p',p,... 'numSamples',numSamples, 'rowDelay', rowDelay);
Simulate the Model
out = sim(model);
Construct the Solution from the Output Data
The Complex Burst QR Decomposition block outputs data one row at a time. When a result row is output, the block sets
validOut to true. The rows of matrices R and C are output in reverse order to accommodate back-substitution, so you must reconstruct the data to interpret the results. To reconstruct the matrices R and C from the output data, use the helper function
[C,R] = fixed.example.qrModelOutputToArray(out.C,out.R,m,n,p,numSamples);
Extract the Economy-Size Q
The block computes C = Q'B. In this example, B is the identity matrix, so Q = C' is the economy-size orthogonal factor of the QR decomposition.
Q = C';
Verify that Q is Orthogonal and R is Upper-Triangular
Q is orothogonal, so Q'Q is the identity matrix within roundoff.
I = Q'*Q
I = 1.0000 + 0.0000i -0.0000 + 0.0000i -0.0000 + 0.0000i -0.0000 - 0.0000i 1.0000 + 0.0000i -0.0000 + 0.0000i -0.0000 - 0.0000i -0.0000 - 0.0000i 1.0000 + 0.0000i DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 62 FractionLength: 48
R is an upper-triangular matrix.
R = 3.1655 + 0.0000i 0.4870 + 1.1980i 0.1466 - 0.9092i 0.0000 + 0.0000i 2.2184 + 0.0000i -0.2159 - 0.0972i 0.0000 + 0.0000i 0.0000 + 0.0000i 2.2903 + 0.0000i DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 29 FractionLength: 24
ans = logical 1
Verify the Accuracy of the Output
To evaluate the accuracy of the Complex Burst QR Decomposition block, compute the relative error.
relative_error = norm(double(Q*R - A))/norm(double(A))
relative_error = 1.2460e-06
