LUTCompressionResult
Description
A LUTCompressionResult
object contains the optimized lookup table
data for all Lookup Table blocks in a system. To create a
LUTCompressionResult
object, use the FunctionApproximation.compressLookupTables
function. To replace the lookup
tables in your system with the optimized version, use the replace
function.
Creation
Create a LUTCompressionResult
object using FunctionApproximation.compressLookupTables
.
Properties
MemoryUnits
— Units for memory usage
'bytes'
(default) | 'bits'
| 'Kb'
| 'Kibit'
| 'KB'
| 'KiB'
| 'Mb'
| 'Mibit'
| 'MB'
| 'MiB'
| 'Gb'
| 'Gibit'
| 'GB'
| 'GiB'
Units for MaxMemoryUsage
property, specified as
'bits'
, 'bytes'
, or one of the other enumerated
options.
Data Types: char
MemoryUsageTable
— Table summarizing the effects of compression
table
Table summarizing the effects of compression. The table contains one row for each lookup table compressed in the system and its corresponding memory savings.
Data Types: table
NumLUTsFound
— Number of lookup tables found in system
integer-valued scalar
Number of lookup tables found in the specified system, specified as an integer-valued scalar.
Data Types: double
NumImprovements
— Number of lookup tables compressed
integer-valued scalar
Number of lookup tables compressed in the system, specified as an integer-valued scalar.
Data Types: double
TotalMemoryUsed
— Total memory of all lookup tables in system before compression
scalar
Total memory of all lookup tables in the system before compression, returned as a
scalar. You can specify the units of this property by using the
MemoryUnits
property.
Data Types: double
TotalMemoryUsedNew
— Total memory of all lookup tables in system after compression
scalar
Total memory of all lookup tables in the system after compression, returned as a
scalar. You can specify the units of this property by using the
MemoryUnits
property.
Data Types: double
TotalMemorySavings
— Difference between total memory before compression and after compression
scalar
Difference between the total memory of all lookup tables in the system before and
after compression, returned as a scalar. You can specify the units of this property by
using the MemoryUnits
property.
Data Types: double
TotalMemorySavingsPercent
— Percentage reduction in memory used by lookup tables in the system
scalar
Percentage reduction in the memory used by the lookup tables in the system after compression, returned as a scalar.
Data Types: double
SUD
— System containing compressed lookup tables
character vector
System containing compressed lookup tables, returned as a character vector.
SUD
is the same as the system
input argument
of the FunctionApproximation.compressLookupTables
function.
Data Types: char
WordLengths
— Word lengths used for breakpoints and table data in the compressed lookup tables
scalar | vector
Word lengths used for breakpoints and table data in the compressed lookup tables, returned as a scalar or vector of integers.
Data Types: double
FindOptions
— Options for finding lookup tables in system
Simulink.FindOptions
object
Simulink.FindOptions
object specifying options for finding lookup tables in
the system.
Object Functions
Examples
Compress All Lookup Table Blocks in a System
This example shows how to compress all Lookup Table blocks in a system.

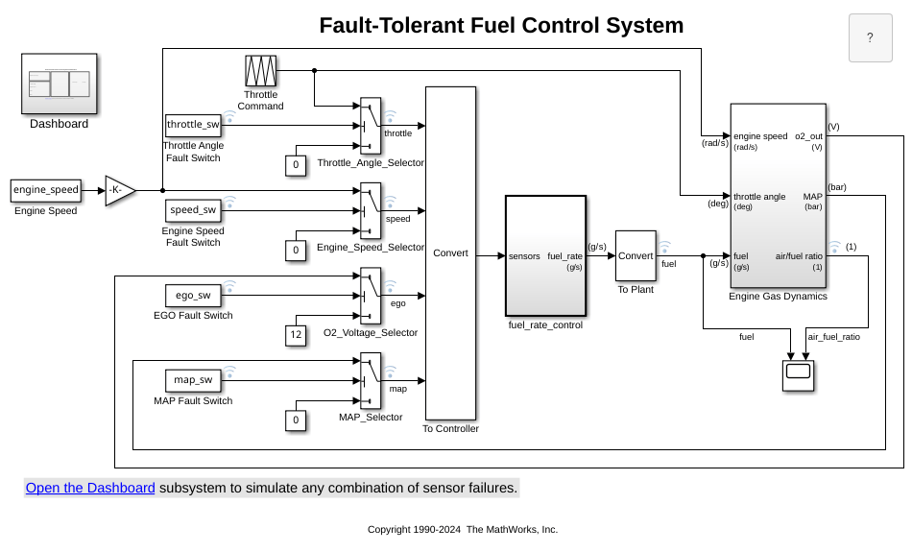

Open the model containing the lookup tables that you want to compress.
system = 'sldemo_fuelsys';
open_system(system)
Use the FunctionApproximation.compressLookupTables
function to compress all of the lookup tables in the model. The output returns all blocks that are modified and the memory savings for each.
compressionResult = FunctionApproximation.compressLookupTables(system)
- Found 5 supported lookup tables - Percent reduction in memory for compressed solution - 2.37% for sldemo_fuelsys/fuel_rate_control/airflow_calc/Pumping Constant - 2.37% for sldemo_fuelsys/fuel_rate_control/control_logic/Throttle.throttle_estimate/Throttle Estimation - 3.55% for sldemo_fuelsys/fuel_rate_control/control_logic/Speed.speed_estimate/Speed Estimation - 6.38% for sldemo_fuelsys/fuel_rate_control/control_logic/Pressure.map_estimate/Pressure Estimation - 9.38% for sldemo_fuelsys/fuel_rate_control/airflow_calc/Ramp Rate Ki compressionResult = LUTCompressionResult with properties: MemoryUnits: bytes MemoryUsageTable: [5x5 table] NumLUTsFound: 5 NumImprovements: 5 TotalMemoryUsed: 6024 TotalMemoryUsedNew: 5796 TotalMemorySavings: 228 TotalMemorySavingsPercent: 3.7849 SUD: 'sldemo_fuelsys' WordLengths: [8 16 32] FindOptions: [1x1 Simulink.internal.FindOptions] Display: 1
Use the replace
function to replace each Lookup Table block with a block containing the original and compressed version of the lookup table.
replace(compressionResult);
You can revert the lookup tables back to their original state using the revert
function.
revert(compressionResult);
Version History
Introduced in R2020a
