Far-field Terminologies

Directivity

Directivity is the ability of an antenna or array to radiate power in a particular direction. It can be defined as ratio of maximum radiation intensity in the desired direction to the average radiation intensity in all other directions. The equation for directivity is:

D=4πU(θ,ϕ)Prad

where:

  • D is the directivity of the antenna

  • U is the radiation intensity of the antenna

  • Prad is the average radiated power of antenna in all other directions

Antenna directivity is dimensionless and is calculated in decibels compared to the isotropic radiator (dBi).

Directivity Value of Helix Antenna.

Calculate the directivity of a helix antenna.

h = helix;
D = pattern(h, 2e9, 0, 1:1:360);

Showing the first five directivity values.

Dnew = D(1:5)
Dnew = 5×1

   -6.4066
   -6.1929
   -5.9655
   -5.7262
   -5.4770

Gain

The gain of an antenna or array depends on the directivity and efficiency of the antenna or array. It can be defined as the ratio of maximum radiation intensity in the desired direction to the total power input of the antenna. The equation for gain of an antenna is:

G=4πU(θ,ϕ)Pin

where:

  • G is the gain of the antenna.

  • U is the radiation intensity of the antenna.

  • Pin is the total power input to the antenna.

If the efficiency of the antenna in the desired direction is 100%, then the total power input to the antenna is equal to the total power radiated by the antenna, that is, Pin=Prad. In this case, the antenna directivity is equal to the antenna gain.

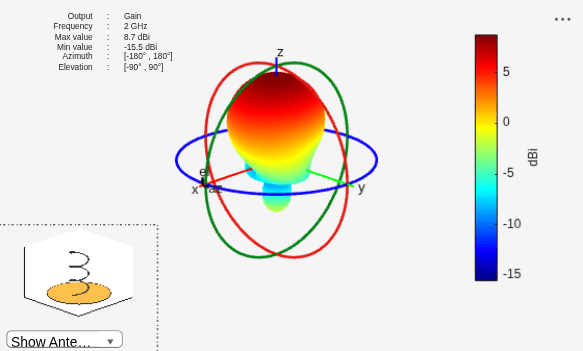

Gain of Helix Antenna

Calculate the gain of the helix antenna.

h = helix;
pattern(h, 2e9, 'Type',"gain")

Figure contains an axes object and other objects of type uicontrol. The axes object contains 4 objects of type patch, surface.

Realized Gain

The realized gain or absolute gain of an antenna or array takes into account reflection (mismatch) losses. The port mismatch losses arise due to the difference in antenna input impedance and matching impedance. In figure above,

  • Pin is the input power to the antenna.

  • Prad is the radiated power of the antenna.

  • Pref is the reflected power from antenna due to the port mismatch.

This figure shows relation between gain, realized gain, and directivity as follows:

Realized Gain = (Port efficiency) * (Radiation efficiency) * (Gain) = (Port efficiency) * (Directivity)

Port efficiency = Pref / Pin

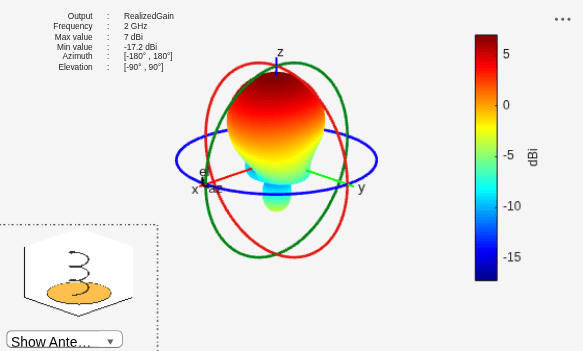

Realized Gain of Helix Antenna

Calculate the realized gain of the helix antenna.

h = helix;
pattern(h,2e9,'Type',"realizedgain");

Figure contains an axes object and other objects of type uicontrol. The axes object contains 4 objects of type patch, surface.

References

[1] Makarov, Sergey N. Antenna and EM Modeling in MATLAB. Chapter3, Sec 3.4 3.8. Wiley Inter-Science.

[2] Balanis, C.A. Antenna Theory, Analysis and Design, Chapter 2, sec 2.3-2.6, Wiley.
