5G NR Downlink ACLR Measurement

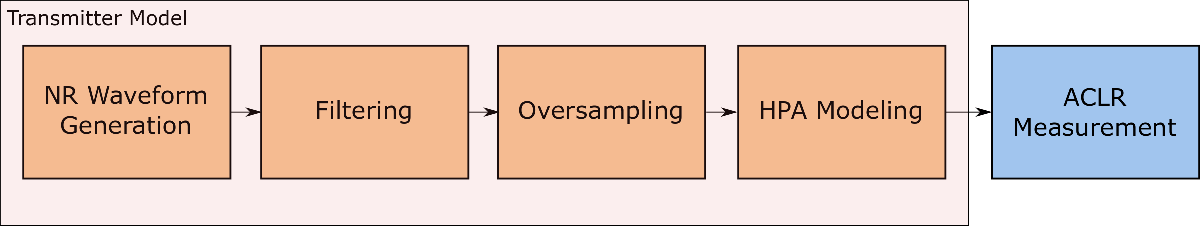

This example shows how to measure the adjacent channel leakage ratio (ACLR) for 5G NR test models (NR-TMs) in frequency range 1 (FR1) and FR2 using 5G Toolbox™.

Introduction

The ACLR is the ratio of the filtered mean power centered on the assigned channel frequency to the filtered mean power centered on an adjacent channel frequency. This example performs ACLR measurements for an NR downlink waveform, as defined in TS 38.104 Section 6.6.3. To model the effect of out-of-band spectral emissions, the example applies spectral regrowth on an oversampled waveform by using a high power amplifier (HPA) model.

Generate NR-TM Waveform

Use the MATLAB class hNRReferenceWaveformGenerator to generate 5G NR-TMs for FR1 and FR2. You can generate the NR-TM waveforms by specifying these parameters:

  • NR-TM name

  • Channel bandwidth

  • Subcarrier spacing

  • Duplexing mode

For more information, see the 5G NR-TM and FRC Waveform Generation example.

% Select the NR-TM waveform parameters
nrtm = "NR-FR1-TM1.2";  % NR-TM name and properties
bw   = "20MHz";  % Channel bandwidth
scs  = "15kHz";  % Subcarrier spacing
dm   = "FDD";  % Duplexing mode

% Create generator object for the above NR-TM
tmWaveGen = hNRReferenceWaveformGenerator(nrtm,bw,scs,dm);

% Ensure no windowing to highlight impact of filtering on ACLR
tmWaveGen = makeConfigWritable(tmWaveGen);
tmWaveGen.Config.WindowingPercent = 0;

% Generate waveform
[tmWaveform,tmWaveInfo] = generateWaveform(tmWaveGen);
samplingRate = tmWaveInfo.Info.SamplingRate;   % Waveform sampling rate (Hz)

% Visualize the associated PRB and subcarrier resource grids
displayResourceGrid(tmWaveGen);

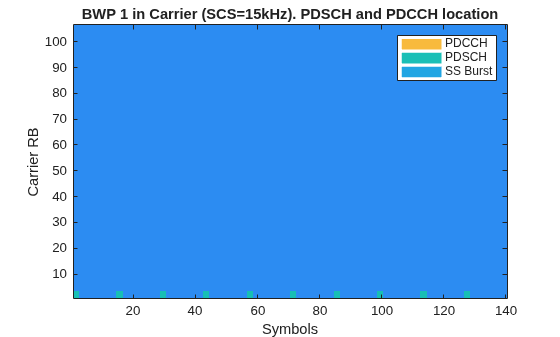

Figure contains an axes object. The axes object with title BWP 1 in Carrier (SCS=15kHz). PDSCH and PDCCH location contains 4 objects of type image, line. These objects represent PDCCH, PDSCH, SS Burst.

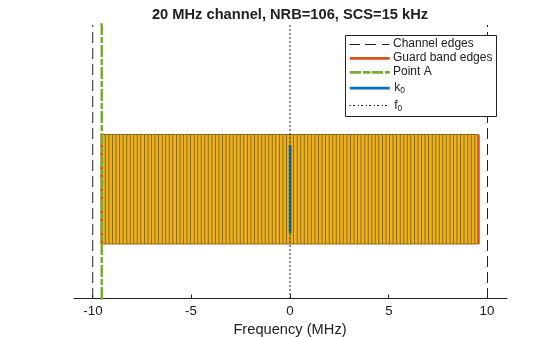

Figure contains an axes object. The axes object with title 20 MHz channel, NRB=106, SCS=15 kHz contains 113 objects of type rectangle, line. These objects represent Guardband edges, Point A, k_0, f_0, Channel edges.

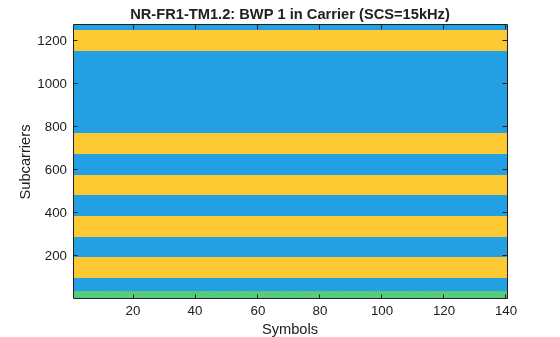

Figure contains an axes object. The axes object with title NR-FR1-TM1.2: BWP 1 in Carrier (SCS=15kHz) contains an object of type image.

Display Results

  • The associated PRB resource grid (top) depicts the allocation of the different components (PDCCH, PDSCH, CORESET and SS Burst) in each BWP. The grid does not plot the amplitude of the signals only the signal locations in the grid.

  • The SCS specific carrier resource grids (middle) along with the minimum guardbands, aligned relative to the overall channel bandwidth.

  • The subcarrier resource grid (bottom) indicates the amplitude levels of the generated waveform. If just one color is shown, all the components have the same amplitude.

Calculate ACLR Parameters

The helper function hACLRParametersNR.m calculates the parameters required for ACLR measurement. It returns a structure with these fields:

  • Bandwidth: the channel bandwidth associated with tmWaveform, in Hz. This is the overall bandwidth of the assigned channel.

  • MeasurementBandwidth: the ACLR measurement bandwidth in Hz.

  • AdjacentChannelOffset: a vector of NR center frequencies, in Hz, for adjacent channels.

  • OSR: the integer oversampling ratio of the input tmWaveform required to create a signal capable of representing 1st and 2nd adjacent channels.

  • SamplingRate: the sampling rate of the oversampled signal used to measure ACLR. If OSR = 1, this signal is the input waveform; if OSR > 1, this signal is the input waveform upsampled by OSR. Therefore: aclrParameters.SamplingRate = OSR*samplingRate (input waveform sampling rate).

aclrParameters = hACLRParametersNR(tmWaveGen.Config);
disp(aclrParameters);
                Bandwidth: 20000000
     MeasurementBandwidth: 19080000
    AdjacentChannelOffset: [-40000000 -20000000 20000000 40000000]
                      OSR: 4
             SamplingRate: 122880000

Filter Waveform to Improve ACLR

The generated waveform has no filtering, so there are significant out-of-band spectral emissions owing to the implicit rectangular pulse shaping in the OFDM modulation (each OFDM subcarrier has a sinc shape in the frequency domain). Filtering the waveform improves ACLR performance.

Design a filter with a transition band that starts at the edge of the occupied transmission bandwidth (aclrParameters.MeasurementBandwidth) and stops at the edge of the overall channel bandwidth (aclrParameters.Bandwidth). This filter involves no rate change, it just shapes the spectrum within the original bandwidth of the waveform.

% Design filter
lpFilt = designfilt('lowpassfir',...
    'PassbandFrequency',aclrParameters.MeasurementBandwidth/2,...
    'StopbandFrequency',aclrParameters.Bandwidth/2,...
    'PassbandRipple',0.1,...
    'StopbandAttenuation',80,...
    'SampleRate',samplingRate);

% Apply filter
filtTmWaveform = filter(lpFilt,tmWaveform);

Oversampling and HPA Nonlinearity Model

To create a signal capable of representing 1st and 2nd adjacent carriers, for example, to represent aclrParameters.Bandwidth with at most 85% bandwidth occupancy, oversample the NR waveform. After oversampling the signal, employ an HPA model to generate out-of-band distortion. For example, to simulate the HPA behaviour, you can use the Rapp method, which is widely used in wireless applications to generate AM/AM distortion. In MATLAB®, you can use the Memoryless Nonlinearity object to model the Rapp method. To highlight the impact of filtering on the ACLR measurements, apply the oversampling and HPA nonlinearities first to the filtered NR signal and then to the same NR signal without filtering.

% Apply required oversampling
resampled = resample(tmWaveform,aclrParameters.OSR,1);           % Not filtered
filtResampled = resample(filtTmWaveform,aclrParameters.OSR,1);   % Filtered

% Create and configure a memoryless nonlinearity to model the amplifier
nonLinearity = comm.MemorylessNonlinearity;
nonLinearity.Method = 'Rapp model';
nonLinearity.Smoothness = 3;              % p parameter
nonLinearity.LinearGain = 0.5;            % dB
nonLinearity.OutputSaturationLevel = 2;   % It limits the output signal level

% Signal conditioning to control the HPA input back-off level
resampled = resampled/max(abs(resampled));                % Not filtered
filtResampled = filtResampled/max(abs(filtResampled));    % Filtered

% Apply the amplifier model to the NR waveforms
txWaveform = nonLinearity(resampled);           % Not filtered
txFiltWaveform = nonLinearity(filtResampled);   % Filtered

Calculate NR ACLR

The hACLRMeasurementNR.m helper function measures the NR ACLR using a square window on adjacent channels. It also measures the power (in dBm) of the signal in the main channel.

% Calculate NR ACLR
aclr = hACLRMeasurementNR(aclrParameters,txWaveform);               % Not filtered
filtAclr = hACLRMeasurementNR(aclrParameters,txFiltWaveform);   % Filtered

Calculate Error Vector Magnitude

The hNRPDSCHEVM.m helper function measures the error vector magnitude (EVM) of NR-TM or fixed reference channel (FRC) waveforms. The function calculates the root mean square (RMS) and peak EVMs per OFDM symbol, slot, subcarrier, and overall EVM.

% EVM configuration parameters
evmCfg.PlotEVM = false;
evmCfg.SampleRate = aclrParameters.SamplingRate;
evmCfg.Label = tmWaveGen.ConfiguredModel{1};

% Measure the EVM related statistics for the transmitted waveform without filtering
evmInfo = hNRDownlinkEVM(tmWaveGen.Config,txWaveform,evmCfg)
EVM stats for BWP idx : 1
PDSCH RMS EVM, Peak EVM, slot 0: 0.105 0.217%
PDSCH RMS EVM, Peak EVM, slot 1: 0.106 0.223%
PDSCH RMS EVM, Peak EVM, slot 2: 0.105 0.219%
PDSCH RMS EVM, Peak EVM, slot 3: 0.105 0.217%
PDSCH RMS EVM, Peak EVM, slot 4: 0.105 0.215%
PDSCH RMS EVM, Peak EVM, slot 5: 0.105 0.221%
PDSCH RMS EVM, Peak EVM, slot 6: 0.105 0.217%
PDSCH RMS EVM, Peak EVM, slot 7: 0.106 0.222%
PDSCH RMS EVM, Peak EVM, slot 8: 0.105 0.219%
PDSCH RMS EVM, Peak EVM, slot 9: 0.103 0.216%
PDCCH RMS EVM, Peak EVM, slot 0: 0.107 0.211%
PDCCH RMS EVM, Peak EVM, slot 1: 0.107 0.213%
PDCCH RMS EVM, Peak EVM, slot 2: 0.108 0.214%
PDCCH RMS EVM, Peak EVM, slot 3: 0.108 0.211%
PDCCH RMS EVM, Peak EVM, slot 4: 0.105 0.211%
PDCCH RMS EVM, Peak EVM, slot 5: 0.107 0.211%
PDCCH RMS EVM, Peak EVM, slot 6: 0.108 0.220%
PDCCH RMS EVM, Peak EVM, slot 7: 0.107 0.214%
PDCCH RMS EVM, Peak EVM, slot 8: 0.104 0.212%
PDCCH RMS EVM, Peak EVM, slot 9: 0.106 0.212%
Averaged RMS EVM frame 0: 0.105%
Averaged overall PDSCH RMS EVM: 0.105%
Overall PDSCH Peak EVM = 0.22315%
Averaged overall PDCCH RMS EVM: 0.107%
Overall PDCCH Peak EVM = 0.21958%
evmInfo = struct with fields:
    PDSCH: [1x1 struct]
    PDCCH: [1x1 struct]

% Measure the EVM related statistics for the transmitted waveform with filtering
evmInfoFilt = hNRDownlinkEVM(tmWaveGen.Config,txFiltWaveform,evmCfg);
EVM stats for BWP idx : 1
PDSCH RMS EVM, Peak EVM, slot 0: 0.241 0.622%
PDSCH RMS EVM, Peak EVM, slot 1: 0.248 0.616%
PDSCH RMS EVM, Peak EVM, slot 2: 0.239 0.653%
PDSCH RMS EVM, Peak EVM, slot 3: 0.230 0.663%
PDSCH RMS EVM, Peak EVM, slot 4: 0.259 0.597%
PDSCH RMS EVM, Peak EVM, slot 5: 0.271 0.764%
PDSCH RMS EVM, Peak EVM, slot 6: 0.246 0.619%
PDSCH RMS EVM, Peak EVM, slot 7: 0.245 0.655%
PDSCH RMS EVM, Peak EVM, slot 8: 0.230 0.614%
PDCCH RMS EVM, Peak EVM, slot 0: 0.386 1.284%
PDCCH RMS EVM, Peak EVM, slot 1: 0.287 0.821%
PDCCH RMS EVM, Peak EVM, slot 2: 0.257 0.830%
PDCCH RMS EVM, Peak EVM, slot 3: 0.251 0.846%
PDCCH RMS EVM, Peak EVM, slot 4: 0.231 0.883%
PDCCH RMS EVM, Peak EVM, slot 5: 0.284 0.908%
PDCCH RMS EVM, Peak EVM, slot 6: 0.344 0.954%
PDCCH RMS EVM, Peak EVM, slot 7: 0.283 1.131%
PDCCH RMS EVM, Peak EVM, slot 8: 0.279 1.010%
Averaged overall PDSCH RMS EVM: 0.246%
Overall PDSCH Peak EVM = 0.76376%
Averaged overall PDCCH RMS EVM: 0.293%
Overall PDCCH Peak EVM = 1.284%

Display Results

Display the spectrum and the adjacent channel leakage ratios.

Not Filtered

According to TS 38.104 Section 6.6.3.2, the minimum required ACLR for conducted measurements is 45 dB. As some of these ACLR values are lower than 45 dB, they do not fall within the requirements.

hACLRResultsNR(aclr,aclrParameters,txWaveform,'(not Filtered)');

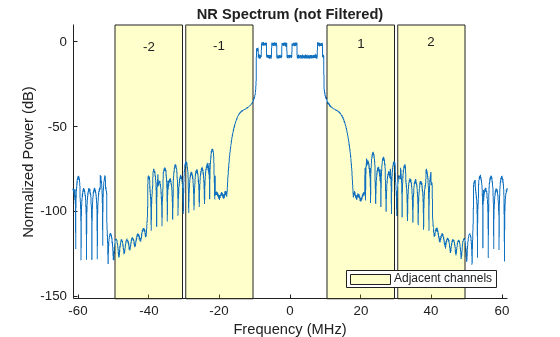

Figure contains an axes object. The axes object with title NR Spectrum (not Filtered) contains 9 objects of type patch, text, line. This object represents Adjacent channels.

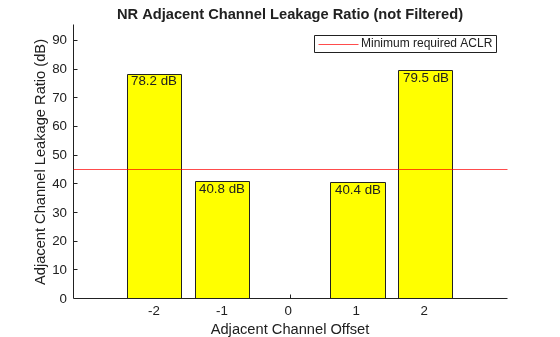

Figure contains an axes object. The axes object with title NR Adjacent Channel Leakage Ratio (not Filtered) contains 6 objects of type constantline, bar, text. This object represents Minimum required ACLR.

Filtered

The performance improves when the generated waveform is filtered. The ACLR results with the filtered waveform are higher than the minimum required value.

hACLRResultsNR(filtAclr,aclrParameters,txFiltWaveform,'(Filtered)');

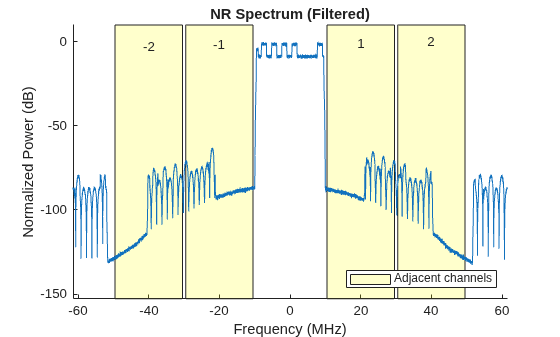

Figure contains an axes object. The axes object with title NR Spectrum (Filtered) contains 9 objects of type patch, text, line. This object represents Adjacent channels.

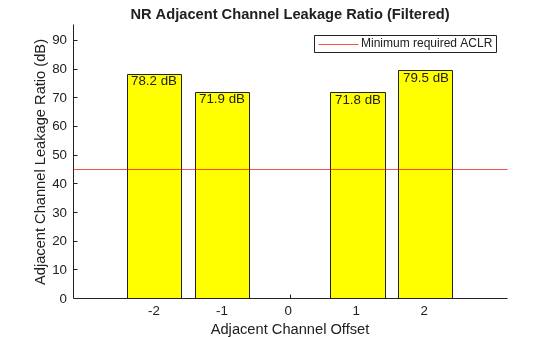

Figure contains an axes object. The axes object with title NR Adjacent Channel Leakage Ratio (Filtered) contains 6 objects of type constantline, bar, text. This object represents Minimum required ACLR.

Local Functions

function hACLRResultsNR(aclr, aclrParameters, waveform, arg)

    minACLR = 45;

    % 4th input argument is plot title qualifier
    if nargin > 3
        titleText = [' ' arg];
    elseif nargin > 1
        titleText = [];
    else
        titleText = [];
        waveform = [];
    end

    % ACLR values and ticks for bar chart
    values = round([aclr(1:end/2) 0 aclr(end/2+1:end)],1);
    tick = 1:numel(values);
    ticklabel = tick-ceil(numel(tick)/2);
    labelvec = tick;
    labelvec(ceil(end/2)) = []; % Do not plot label for 0dB ACLR on channel

    % Plot NR Spectrum
    if ~isempty(waveform)
        figure;
        [spectrum, frequency] = pwelch(waveform, kaiser(8192*4,19), [], [], ...
            aclrParameters.SamplingRate, 'centered', 'power');
        frequency = frequency * 10^(-6); % MHz
        spectrum = 10*log10(spectrum / max(spectrum));
        adjacentChannelLabel = [ticklabel(1:floor(length(ticklabel)/2)) ...
        ticklabel(floor(length(ticklabel)/2)+2:end)];
        % Select 'x' and 'y' limits to show the adjacent channels in the plot
        xLimitRight = aclrParameters.AdjacentChannelOffset + (aclrParameters.MeasurementBandwidth/2);
        xLimitRight = xLimitRight * 10^(-6); % MHz
        xLimitLeft = aclrParameters.AdjacentChannelOffset - (aclrParameters.MeasurementBandwidth/2);
        xLimitLeft = xLimitLeft * 10^(-6); % MHz
        yLimits = [min(spectrum)-20 max(spectrum)+10];
        ylim(yLimits);
        xlim([min(frequency) max(frequency)])
        hold on;
        for i = 1:length(aclrParameters.AdjacentChannelOffset)
            patch('XData',[xLimitRight(i) xLimitRight(i) xLimitLeft(i) ...
                xLimitLeft(i)],'YData', [yLimits fliplr(yLimits)], ...
                'FaceColor','y','FaceAlpha',0.2) % Plot adjacent channels
            text(aclrParameters.AdjacentChannelOffset(i)*10^(-6), i, sprintf('%d', ...
                adjacentChannelLabel(i)), 'HorizontalAlignment', 'Center', ...
                'VerticalAlignment', 'Top'); % Plot adjacent channel labels
        end
        plot(frequency, spectrum);
        hold off;
        xlabel('Frequency (MHz)');
        ylabel('Normalized Power (dB)');
        title(strcat ('NR Spectrum', titleText));
        legend('Adjacent channels', 'Location', 'SouthEast')
    end

    % Plot NR ACLR
    figure;
    hold on;
    yline(minACLR,'r');
    bar(values, 'BaseValue', 0, 'FaceColor', 'yellow');
    hold off;
    set(gca, 'XTick', tick, 'XTickLabel', ticklabel, 'YLim', ...
        [0 0.2*max(values)+max(values)]);
    for i = labelvec
        text(i, values(i), sprintf('%0.1f dB',values(i)), ...
            'HorizontalAlignment', 'Center', 'VerticalAlignment', 'Top');
    end
    title(strcat('NR Adjacent Channel Leakage Ratio', titleText));
    xlabel('Adjacent Channel Offset');
    ylabel('Adjacent Channel Leakage Ratio (dB)');
    legend('Minimum required ACLR');

end

References

[1] 3GPP TS 38.104. “NR; Base Station (BS) radio transmission and reception.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
