generate

Class: sigwin.kaiser
Namespace: sigwin

Generates Kaiser window

Syntax

win = generate(H)

Description

win = generate(H) returns the values of the Kaiser window object as a double-precision column vector.

Examples

expand all

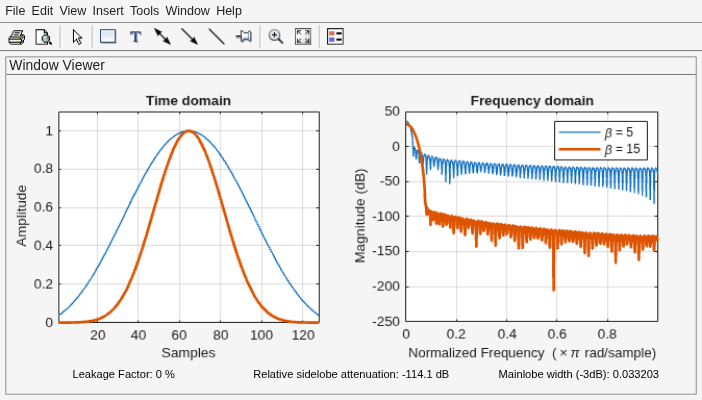

Generate two Kaiser windows of length N = 64:

  • The first window has an attenuation parameter β = 5.

  • The second window has β = 15.

Display the two windows.

H05 = sigwin.kaiser(128,5);
H15 = sigwin.kaiser(128,15);

wvt = wvtool(H05,H15);
legend(wvt.CurrentAxes,'\beta = 5','\beta = 15')

Generate a Kaiser window with length N = 16 and the default β = 1/2. Return its values as a column vector. Show information about the window object. Display the window.

H = sigwin.kaiser(16);

win = generate(H)
win = 16×1

    0.9403
    0.9550
    0.9677
    0.9783
    0.9868
    0.9933
    0.9976
    0.9997
    0.9997
    0.9976
      ⋮

wininfo = info(H)
wininfo = 4x13 char array
    'Kaiser Window'
    '-------------'
    'Length  : 16 '
    'Beta    : 0.5'

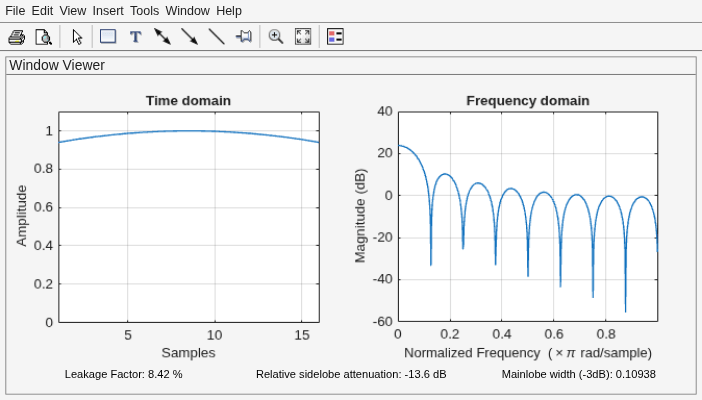

wvtool(H)
